The LM675 is a monolithic power operational amplifier featuring wide bandwidth and low input offset voltage, making it equally suitable for AC and DC applications.
The LM675 is capable of delivering output currents in excess of 3 amps, operating at supply voltages of up to 60V. The device overload protection consists of both internal current limiting and thermal shutdown. The amplifier is also internally compensated for gains of 10 or greater.
All trademarks are the property of their respective owners.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 10 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 60 |
| Iout (typ) (A) | 4 |
| GBW (typ) (MHz) | 5.5 |
| Slew rate (typ) (V/µs) | 8 |
| Vos (offset voltage at 25°C) (max) (mV) | 10 |
| Offset drift (typ) (V/°C) | 0.000025 |
| Iq per channel (typ) (mA) | 18 |
| Features | Decompensated |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| Input bias current (max) (pA) | 2000000 |
| CMRR (typ) (dB) | 90 |
| Rail-to-rail | No |
| Architecture | Bipolar |

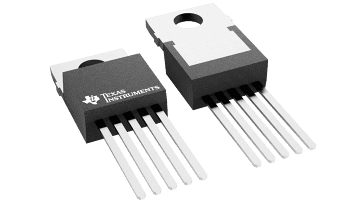

| TO-220 (NDH) | 5 | 86.0552 mm² 10.16 x 8.47 |

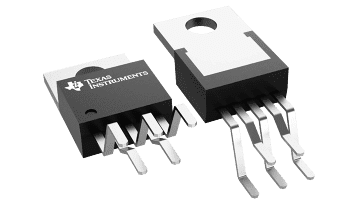

| TO-220 (NEB) | 5 | 86.0552 mm² 10.16 x 8.47 |
