LF256

正在供货

单通道、40V、5MHz、FET 输入运算放大器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

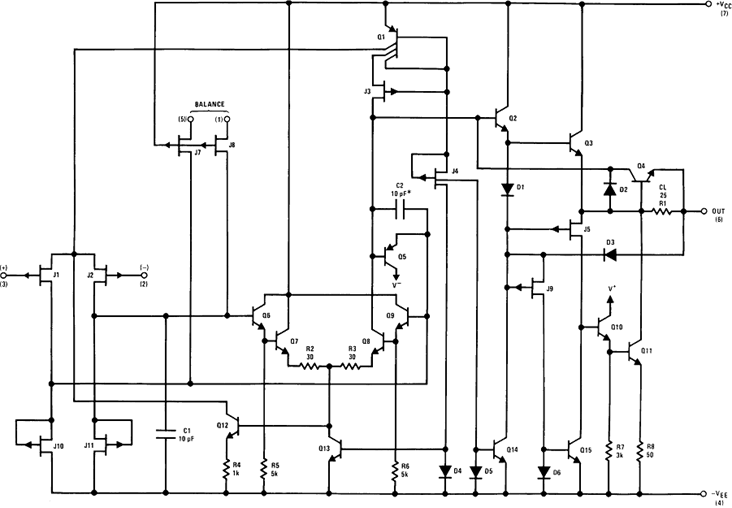

The LFx5x devices are the first monolithic JFET input operational amplifiers to incorporate well-matched, high-voltage JFETs on the same chip with standard bipolar transistors (BI-FET™ Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust, which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.

Advantages
- Replace Expensive Hybrid and Module FET
  Op Amps
- Rugged JFETs Allow Blow-Out Free Handling
  Compared With MOSFET Input Devices
- Excellent for Low Noise Applications Using
  Either High or Low Source Impedance–Very
  Low 1/f Corner
- Offset Adjust Does Not Degrade Drift or
  Common-Mode Rejection as in Most
  Monolithic Amplifiers
- New Output Stage Allows Use of Large
  Capacitive Loads (5,000 pF) Without Stability
  Problems
- Internal Compensation and Large Differential
  Input Voltage Capability
Common Features
- Low Input Bias Current: 30 pA
- Low Input Offset Current: 3 pA
- High Input Impedance: 10¹² Ω
- Low Input Noise Current: 0.01 pA/√Hz
- High Common-Mode Rejection Ratio: 100 dB
- Large DC Voltage Gain: 106 dB
Uncommon Features

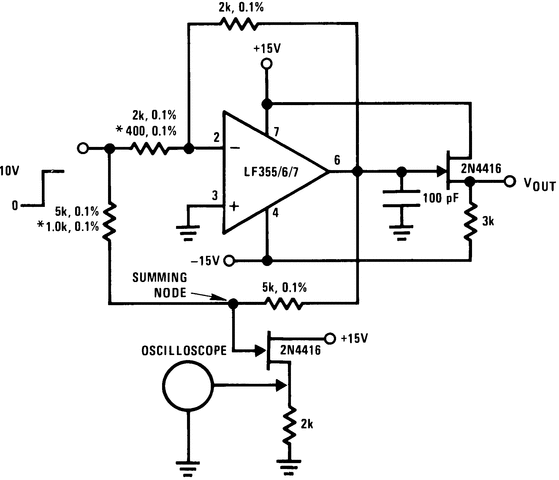

- Extremely Fast Settling Time to 0.01%:
  - 4 µs for the LFx55 devices
  - 1.5 µs for the LFx56
  - 1.5 µs for the LFx57 (A_V = 5)
- Fast Slew Rate:
  - 5 V/µs for the LFx55
  - 12 V/µs for the LFx56
  - 50 V/µs for the LFx57 (A_V = 5)
- Wide Gain Bandwidth:
  - 2.5 MHz for the LFx55 devices
  - 5 MHz for the LFx56
  - 20 MHz for the LFx57 (A_V = 5)
- Low Input Noise Voltage:
  - 20 nV/√Hz for the LFx55
  - 12 nV/√Hz for the LFx56
  - 12 nV/√Hz for the LFx57 (A_V = 5)

Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	44
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	10
Rail-to-rail	No
GBW (typ) (MHz)	5
Slew rate (typ) (V/µs)	12
Vos (offset voltage at 25°C) (max) (mV)	5
Iq per channel (typ) (mA)	5
Vn at 1 kHz (typ) (nV√Hz)	12
Rating	Military
Operating temperature range (°C)	-25 to 85
Offset drift (typ) (µV/°C)	5
Input bias current (max) (pA)	100
CMRR (typ) (dB)	100
Iout (typ) (A)	0.025
Architecture	FET
Input common mode headroom (to negative supply) (typ) (V)	3
Input common mode headroom (to positive supply) (typ) (V)	0.1
Output swing headroom (to negative supply) (typ) (V)	2
Output swing headroom (to positive supply) (typ) (V)	-2

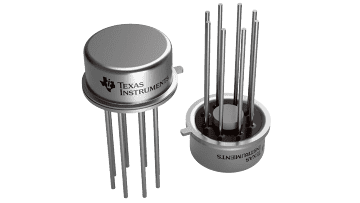

TO-CAN (LMC)

80.2816 mm² 8.96 x 8.96
