LM124AQML

正在供货

工作温度范围为 -55°C 至 125°C 的军用级、四通道、32V、1MHz、3mV 失调电压运算放大器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The LM124/124A consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124/124A can be directly operated off of the standard +5Vdc power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional +15Vdc power supplies.

Available with Radiation Specification
- High Dose Rate 100 krad(Si)
- ELDRS Free 100 krad(Si)
Internally Frequency Compensated for Unity Gain
Large DC Voltage Gain 100 dB
Wide Bandwidth (Unity Gain) 1 MHz
(Temperature Compensated)
Wide Power Supply Range:
- Single Supply 3V to 32V
- Or Dual Supplies ±1.5V to ±16V
Very Low Supply Current Drain (700 μA) — Essentially Independent of Supply Voltage
Low Input Biasing Current 45 nA
(Temperature Compensated)
Low Input Offset Voltage 2 mV
and Offset Current: 5 nA

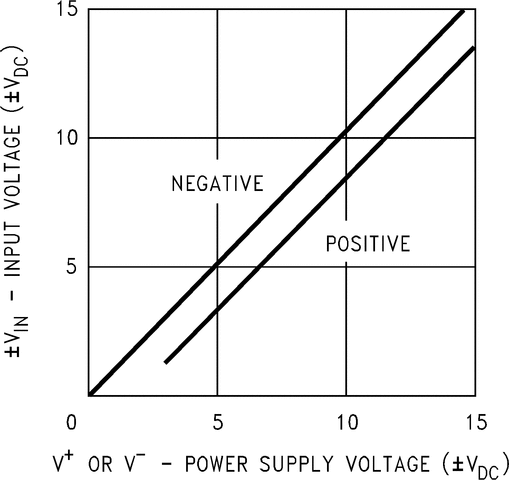

Input Common-Mode Voltage Range Includes Ground
Differential Input Voltage Range Equal to the Power Supply Voltage
Large Output Voltage Swing 0V to V⁺ − 1.5V

All trademarks are the property of their respective owners.

Number of channels	4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	32
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	3
Rail-to-rail	In to V-
GBW (typ) (MHz)	1
Slew rate (typ) (V/µs)	1
Vos (offset voltage at 25°C) (max) (mV)	2
Iq per channel (typ) (mA)	0.175
Vn at 1 kHz (typ) (nV√Hz)	40
Rating	Military
Operating temperature range (°C)	-55 to 125
Offset drift (typ) (µV/°C)	7
CMRR (typ) (dB)	85
Iout (typ) (A)	0.06
Architecture	Bipolar
Input common mode headroom (to negative supply) (typ) (V)	0
Input common mode headroom (to positive supply) (typ) (V)	-3
Output swing headroom (to negative supply) (typ) (V)	0.02
Output swing headroom (to positive supply) (typ) (V)	-3

CDIP (J)	14	130.4652 mm² 19.56 x 6.67

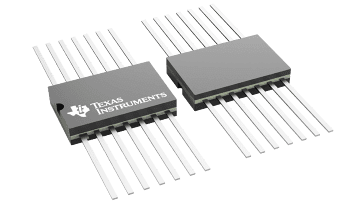

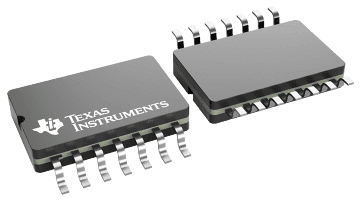

CFP (NAC)	14	62.9285 mm² 9.91 x 6.35
CFP (NAD)	14	62.9285 mm² 9.91 x 6.35
DIESALE (Y)	—	See data sheet
LCCC (NAJ)	20	79.0321 mm² 8.89 x 8.89
