The LM139A-MIL device consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
The LM139A-MIL device is characterized for operation over the full military temperature range of –55°C to +125°C.
| Number of channels | 4 |
| Output type | Open-collector, Open-drain |
| Propagation delay time (µs) | 1.3 |
| Vs (max) (V) | 36 |
| Vs (min) (V) | 2 |
| Vos (offset voltage at 25°C) (max) (mV) | 2 |
| Iq per channel (typ) (mA) | 0.2 |
| Input bias current (±) (max) (nA) | 25 |
| Rail-to-rail | In to V- |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| VICR (max) (V) | 34.5 |
| VICR (min) (V) | 0 |

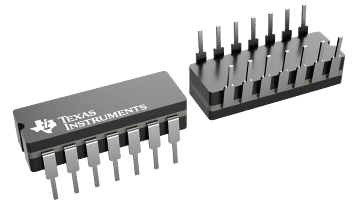

| CDIP (J) | 14 | 130.4652 mm² 19.56 x 6.67 |
| CFP (W) | 14 | 58.023 mm² 9.21 x 6.3 |

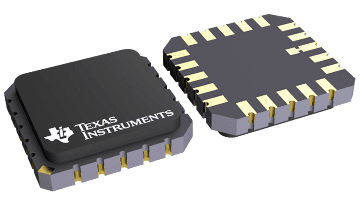

| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
