LM158QML

正在供货

军用级、双通道、32V、700kHz 运算放大器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

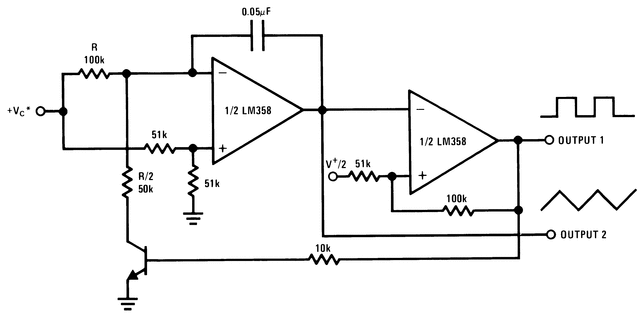

Application areas include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM158 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.

Available with Radiation Specification
- High Dose Rate 100 krad(Si)
- ELDRS Free 100 krad(Si)
Internally Frequency Compensated for Unity Gain
Large DC Voltage Gain: 100 dB
Wide Bandwidth (Unity Gain): 1 MH z(Temperature Compensated)
Wide Power Supply Range:
- Single Supply: 3V to 32V
- Or Dual Supplies: ±1.5V to ±16V
Very Low Supply Current Drain (500 μA) − Essentially Independent of Supply Voltage
Low Input Offset Voltage: 2 mV

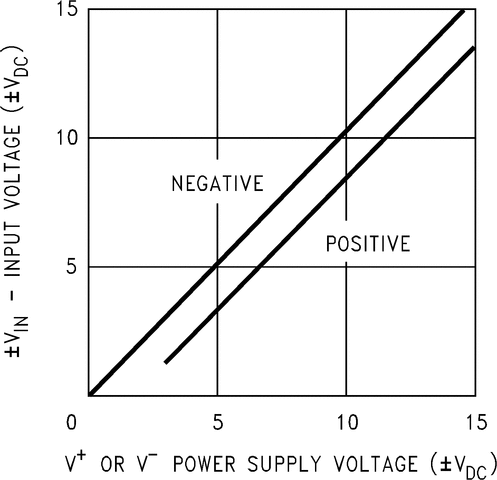

Input Common-mode Voltage Range Includes Ground
Differential Input Voltage Range Equal to the Power Supply Voltage
Large Output Voltage Swing: 0V to V⁺ − 1.5V

All trademarks are the property of their respective owners.

Number of channels	2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	32
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	3
Rail-to-rail	In to V-
GBW (typ) (MHz)	0.7
Slew rate (typ) (V/µs)	0.3
Vos (offset voltage at 25°C) (max) (mV)	2
Iq per channel (typ) (mA)	0.35
Vn at 1 kHz (typ) (nV√Hz)	40
Rating	Military
Operating temperature range (°C)	-55 to 125
Offset drift (typ) (µV/°C)	7
Input bias current (max) (pA)	50000
CMRR (typ) (dB)	80
Iout (typ) (A)	0.03
Architecture	Bipolar
Input common mode headroom (to negative supply) (typ) (V)	0
Input common mode headroom (to positive supply) (typ) (V)	0
Output swing headroom (to negative supply) (typ) (V)	0.02
Output swing headroom (to positive supply) (typ) (V)	-3

CDIP (NAB)	8	79.9592 mm² 10.16 x 7.87

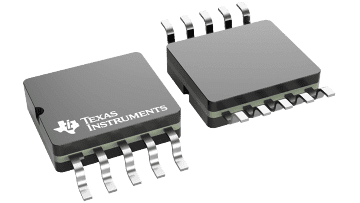

CFP (NAC)	10	62.9285 mm² 9.91 x 6.35
DIESALE (Y)	—	See data sheet

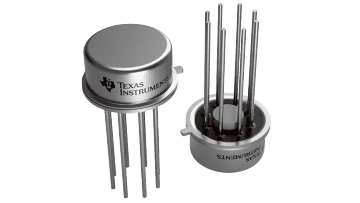

TO-CAN (LMC)	8	80.2816 mm² 8.96 x 8.96
