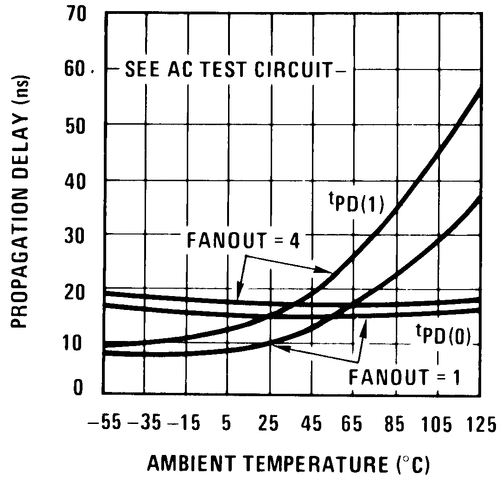

The LM160/LM360 is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the μA760/μA760C, for which it is a pin-for-pin replacement. The device has been optimized for greater speed, input impedance and fan-out, and lower input offset voltage. Typically delay varies only 3 ns for overdrive variations of 5 mV to 400 mV.
Complementary outputs having minimum skew are provided. Applications involve high speed analog to digital convertors and zero-crossing detectors in disk file systems.
All trademarks are the property of their respective owners.
| Number of channels | 1 |
| Output type | Differential |
| Propagation delay time (µs) | 0.13 |
| Vs (max) (V) | 16 |
| Vs (min) (V) | 9 |
| Vos (offset voltage at 25°C) (max) (mV) | 2 |
| Iq per channel (typ) (mA) | 18 |
| Input bias current (±) (max) (nA) | 6000 |
| Rail-to-rail | No |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| Features | Strobe |
| VICR (max) (V) | 13.5 |
| VICR (min) (V) | 2.5 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
