The LM741 is a general purpose operational amplifier which features improved performance over industry standards such as the LM709. They are direct, plug-in replacements for the 709C, LM201, MC1439 and 748 in most applications.
The amplifier offers many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations
All trademarks are the property of their respective owners.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 44 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 10 |
| Rail-to-rail | No |
| GBW (typ) (MHz) | 1 |
| Slew rate (typ) (V/µs) | 0.5 |
| Vos (offset voltage at 25°C) (max) (mV) | 3 |
| Iq per channel (typ) (mA) | 1.7 |
| Vn at 1 kHz (typ) (nV√Hz) | 30 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| Offset drift (typ) (µV/°C) | 15 |
| Input bias current (max) (pA) | 210000 |
| CMRR (typ) (dB) | 90 |
| Iout (typ) (A) | 0.025 |
| Architecture | Bipolar |
| Input common mode headroom (to negative supply) (typ) (V) | 3 |
| Input common mode headroom (to positive supply) (typ) (V) | -3 |
| Output swing headroom (to negative supply) (typ) (V) | 3 |
| Output swing headroom (to positive supply) (typ) (V) | -3 |

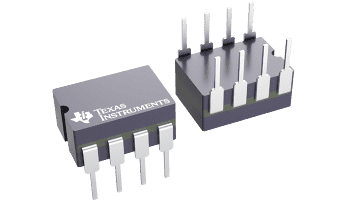

| CDIP (NAB) | 8 | 79.9592 mm² 10.16 x 7.87 |
| DIESALE (Y) | — | See data sheet |

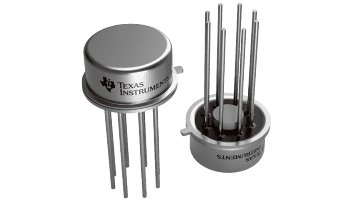

| TO-CAN (LMC) | 8 | 80.2816 mm² 8.96 x 8.96 |
