The LM833 is a dual general purpose operational amplifier designed with particular emphasis on performance in audio systems.
This dual amplifier IC utilizes new circuit and processing techniques to deliver low noise, high speed and wide bandwidth without increasing external components or decreasing stability. The LM833 is internally compensated for all closed loop gains and is therefore optimized for all preamp and high level stages in PCM and HiFi systems.
The LM833 is pin-for-pin compatible with industry standard dual operational amplifiers.
| Number of channels | 2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 10 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 36 |
| GBW (typ) (MHz) | 15 |
| Slew rate (typ) (V/µs) | 7 |
| Rail-to-rail | No |
| Vos (offset voltage at 25°C) (max) (mV) | 5 |
| Iq per channel (typ) (mA) | 2.5 |
| Vn at 1 kHz (typ) (nV√Hz) | 4.5 |
| Features | Premium Sound, Standard Amps |

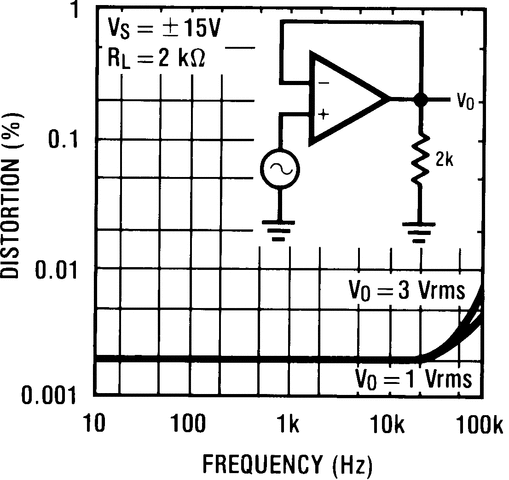

| THD + N at 1 kHz (typ) (%) | 0.002 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Iout (typ) (A) | 0.04 |
| Architecture | Bipolar |
| CMRR (typ) (dB) | 100 |
| Input bias current (max) (pA) | 1000000 |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
