The LT1014, LT1014A, and LT1014D are quad precision operational amplifiers with 14-pin industry-standard configuration. They feature low offset-voltage temperature coefficient, high gain, low supply current, and low noise.
The LT1014, LT1014A, and LT1014D can be operated with both dual ±15-V and single 5-V power supplies. The common-mode input voltage range includes ground, and the output voltage can also swing to within a few milivolts of ground. Crossover distortion is eliminated.
The LT1014C and LT1014D are characterized for operation from 0°C to 70°C. The LT1014I and LT1014DI are characterized for operation from –40°C to 105°C. The LT1014M, LT1014AM and LT1014DM are characterized for operation over the full military temperature range of –55°C to 125°C.
| Number of channels | 4 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 44 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 5 |
| Vos (offset voltage at 25°C) (max) (mV) | 0.8 |
| GBW (typ) (MHz) | 0.7 |
| Slew rate (typ) (V/µs) | 0.4 |
| Rail-to-rail | In to V- |
| Offset drift (typ) (µV/°C) | 0.7 |
| Iq per channel (typ) (mA) | 0.35 |
| Vn at 1 kHz (typ) (nV√Hz) | 22 |
| CMRR (typ) (dB) | 117 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| Input bias current (max) (pA) | 30000 |
| Iout (typ) (A) | 0.025 |
| Architecture | Bipolar |
| Input common mode headroom (to negative supply) (typ) (V) | -0.3 |
| Input common mode headroom (to positive supply) (typ) (V) | -1.2 |
| Output swing headroom (to negative supply) (typ) (V) | 1 |
| Output swing headroom (to positive supply) (typ) (V) | -1 |
| CDIP (J) | 14 | 130.4652 mm² 19.56 x 6.67 |

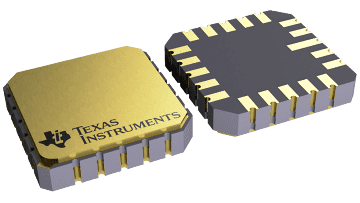

| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
