TAS5631B

正在供货

300W 立体声、400W 单声道、25V 至 52.5V 电源电压、PWM 输入 D 级音频放大器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

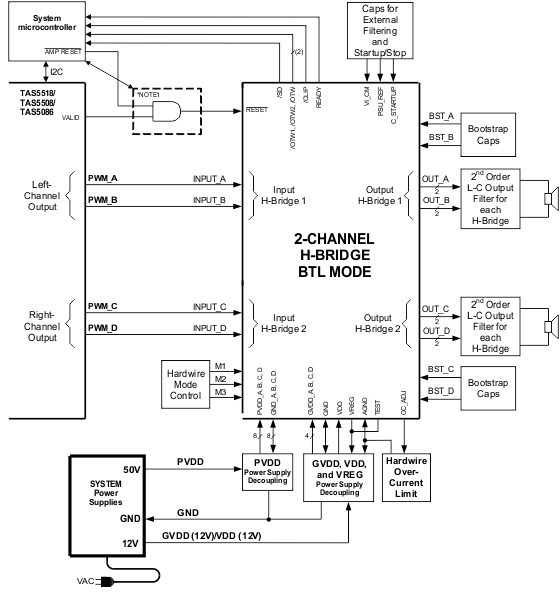

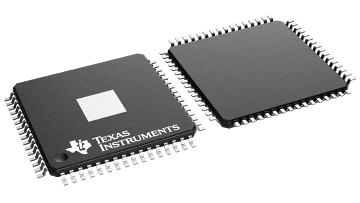

The TAS5631B is a high-performance PWM input class-D amplifier with integrated closed-loop feedback technology (known as PurePath HD technology) with the ability to drive up to 300 W ⁽¹⁾ stereo into 4-Ω to 8-Ω speakers from a single 50-V supply.

PurePath HD technology enables traditional AB-amplifier performance (<0.03% THD) levels while providing the power efficiency of traditional class-D amplifiers.

Unlike traditional class-D amplifiers, the distortion curve does not increase until the output levels move into clipping.

PurePath HD technology enables lower idle losses, making the device even more efficient.

PurePath™ HD Enabled Integrated Feedback Provides:
- Signal Bandwidth up to 80 kHz for High-Frequency Content From HD Sources
- Ultralow 0.03% THD at 1 W Into 4 Ω
- Flat THD at All Frequencies for Natural Sound
- 80-dB PSRR (BTL, No Input Signal)
- >100-dB (A-weighted) SNR
- Click- and Pop-Free Start-Up
Multiple Configurations Possible on the Same PCB With Stuffing Options:
- Mono Parallel Bridge-Tied Load (PBTL)
- Stereo Bridge-Tied Load (BTL)
- 2.1 Single-Ended Stereo Pair and Bridge-Tied Load Subwoofer
- Quad Single-Ended Outputs
Total Output Power at 10% THD+N
- 400 W per Channel in Mono PBTL Configuration
- 300 W per Channel in Stereo BTL Configuration
- 145 W per Channel in Quad Single-Ended Configuration
High-Efficiency Power Stage (>88%) With 60-mΩ Output MOSFETs
Two Thermally Enhanced Package Options:
- PHD (64-Pin QFP)
- DKD (44-Pin PSOP3)
Self-Protection Design (Including Undervoltage, Overtemperature, Clipping,
and Short-Circuit Protection) With Error Reporting
EMI Compliant When Used With Recommended System Design
APPLICATIONS
- Mini Combo System
- AV Receivers
- DVD Receivers
- Active Speakers

All other trademarks are the property of their respective owners

Audio input type	PWM
Architecture	Class-D
Speaker channels (max)	4
Rating	Catalog
Power stage supply (max) (V)	52.5
Power stage supply (min) (V)	25
Load (min) (Ω)	4
Output power (W)	300
SNR (dB)	103
THD + N at 1 kHz (%)	0.03
Iq (typ) (mA)	24.8
Control interface	Hardware
Closed/open loop	Closed
Analog supply (min) (V)	10.8
Analog supply voltage (max) (V)	13.2
PSRR (dB)	80
Operating temperature range (°C)	0 to 70

HTQFP (PHD)

256 mm² 16 x 16
