TAS5611A系列介绍资料

The TAS5611A is a high performance analog input Class D amplifier with integrated closed loop feedback technology (known as PurePath™ HD) with the ability to drive up to 125W⁽¹⁾ Stereo into 4 to 8 Ω Speakers from a single 32.5V supply.

PurePath™ HD technology enables traditional AB-Amplifier performance (<0.03% THD) levels while providing the power efficiency of traditional class D amplifiers.

Unlike traditional Class D amplifiers, the distortion curve only increases once the output levels move into clipping.

PurePath™ HD technology enables lower idle losses making the device even more efficient.

⁽¹⁾ Achievable output power levels are dependent on the thermal configuration of the target application. A high performance thermal interface material between the package exposed heatslug and the heat sink should be used to achieve high output power levels.

PurePath™ HD Enabled Integrated Feedback Provides:
- Signal Bandwidth up to 80kHz for High Frequency Content From HD Sources
- Ultralow 0.03% THD at 1W into 4Ω
- Flat THD at all Frequencies for Natural Sound
- 80dB PSRR (BTL, No Input Signal)
- >100dB (A weighted) SNR
- Click and Pop Free Startup
Pin compatible with TAS5630, TAS5615 and TAS5613

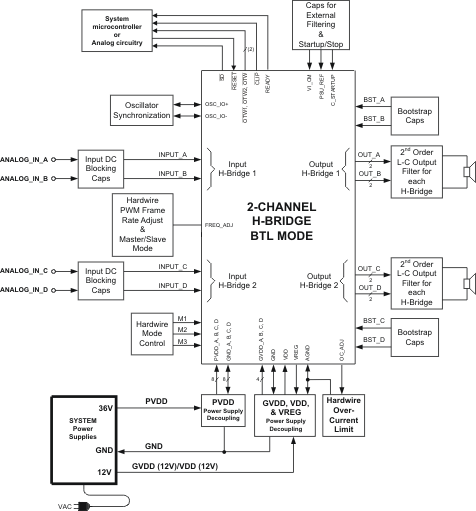

Multiple Configurations Possible on the Same PCB With Stuffing Options:
- Mono Parallel Bridge Tied Load (PBTL)
- Stereo Bridge Tied Load (BTL)
- 2.1 Single Ended Stereo Pair and Bridge Tied Load Subwoofer
Total Output Power at 10%THD+N
- 250W in Mono PBTL Configuration into 2Ω
- 125W per Channel in Stereo BTL Configuration into 4Ω
Total Output Power in BTL configuration at 1%THD+N
- 130W Stereo into 3Ω
- 105W Stereo into 4Ω
- 70W Stereo into 6Ω
- 55W Stereo into 8Ω
>90% Efficient Power Stage With 60-mΩ Output MOSFETs
Self-Protection Design (Including Undervoltage, Overtemperature, Clipping,
and Short-Circuit Protection) With Error Reporting
EMI Compliant When Used With Recommended System Design
Thermally Enhanced Package Options:
- PHD (64-Pin QFP)
APPLICATIONS
- Home Theater Systems
- AV Receivers
- DVD/Blu-ray Receivers
- Mini Combo System
- Active Speakers and Subwoofers

⁽¹⁾ Achievable output power levels are dependent on the thermal configuration of the target application. A high performance thermal interface material between the package exposed heatslug and the heat sink should be used to achieve high output power levels.
All other trademarks are the property of their respective owners

Audio input type	Analog Input
Architecture	Class-D
Speaker channels (max)	4
Rating	Catalog
Power stage supply (max) (V)	34.1
Power stage supply (min) (V)	16
Load (min) (Ω)	4
Output power (W)	125
SNR (dB)	100
THD + N at 1 kHz (%)	0.03
Iq (typ) (mA)	10
Control interface	Hardware
Closed/open loop	Closed
Analog supply (min) (V)	10.8
Analog supply voltage (max) (V)	13.2
Sampling rate (max) (kHz)	400
PSRR (dB)	80
Operating temperature range (°C)	0 to 70

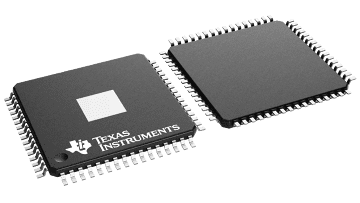

HTQFP (PHD)

64

256 mm² 16 x 16
