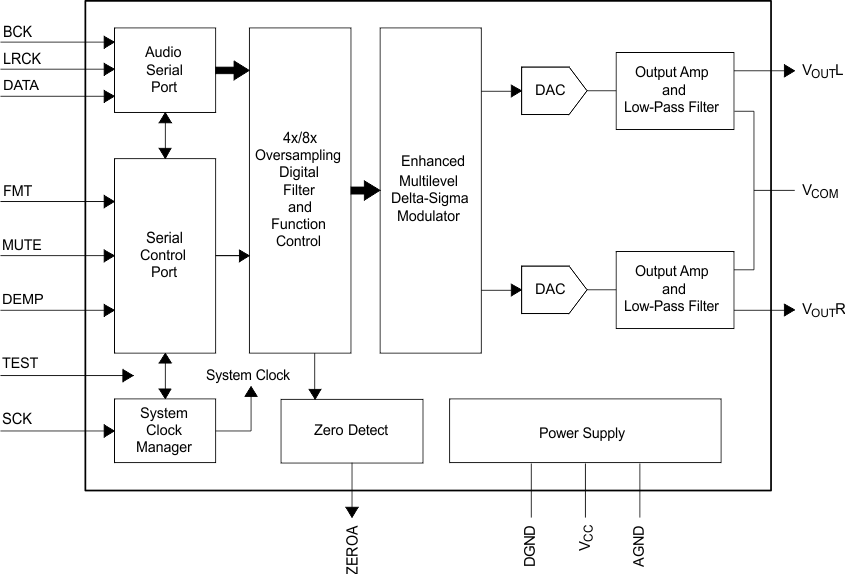

The PCM175x-Q1 family of devices is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package. The data converters use TI's enhanced multilevel delta-sigma architecture, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM175x-Q1 family of devices accepts industry-standard audio data formats with 16- to 24-bit data, providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. A full set of user-programmable functions is accessible through a three-wire serial control port, which supports register write functions.
The PCM1753-Q1 device is pin-compatible with the PCM1748, PCM1742, and PCM1741 devices, except for pin 5.
For all available packages, see the orderable addendum at the end of the data sheet.| Number of DAC channels | 2 |
| Analog inputs | 0 |
| Analog outputs | 2 |
| DAC SNR (typ) (dB) | 106 |
| Sampling rate (max) (kHz) | 192 |
| Control interface | H/W |
| Resolution (Bits) | 24 |
| Architecture | Delta-Sigma |
| Operating temperature range (°C) | -40 to 105 |
| Rating | Automotive |
| SSOP (DBQ) | 16 | 29.4 mm² 4.9 x 6 |
