TLV320DAC3100

正在供货

具有 2.5W 单声道 D 级扬声器放大器、60mW 耳机驱动器和音频处理功能的立体声音频 DAC

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

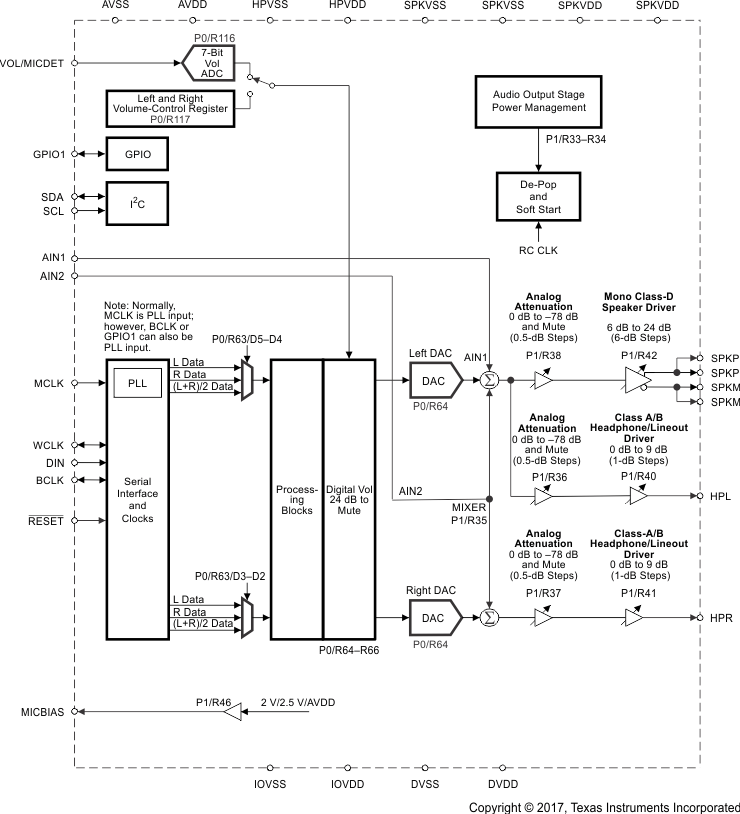

The TLV320DAC3100 device is a low-power, highly integrated, high-performance stereo audio DAC with 24-bit stereo playback and digital audio processing blocks.

The device integrates headphone drivers and speaker drivers. The mono speaker driver can drive loads down to 4 Ω. The TLV320DAC3100 device has a suite of built-in processing blocks for digital audio processing. The digital audio data format is programmable to work with popular audio standard protocols (I²S, left/right-justified) in master, slave, DSP, and TDM modes. Bass boost, treble, or EQ can be supported by the programmable digital signal-processing block. An on-chip PLL provides the high-speed clock needed by the digital signal-processing block. The volume level can be controlled either by pin control or by register control. The audio functions are controlled using the I²C serial bus.

The TLV320DAC3100 device has a programmable digital sine-wave generator and is available in a 32-pin VQFN package.

Stereo Audio DAC with 95-dB SNR
Supports 8-kHz to 192-kHz Sample Rates
Mono Class-D BTL Speaker Driver (2.5 W Into 4-Ω or 1.6 W Into 8-Ω)
Two Single-Ended Inputs With Mixing and Output Level Control
Stereo Headphone/Lineout and Mono Class-D Speaker Outputs Available
Microphone Bias
Headphone Detection
25 Built-in Digital Audio Processing Blocks (PRB_P1 – PRB_P25) Providing Biquad and FIR Filters, DRC, and 3-D Structures
Digital Mixing Capability
Pin Control or Register Control for Digital-Playback Volume-Control Settings
Digital Sine-Wave Generator for Beeps and Key Clicks (PRB_P25)
Programmable PLL for Flexible Clock Generation
I²S, Left-Justified, Right-Justified, DSP, and TDM Audio Interfaces
I²C Control With Register Auto-Increment
Full Power-Down Control
Power Supplies:
- Analog: 2.7 V–3.6 V
- Digital Core: 1.65 V–1.95 V
- Digital I/O: 1.1 V–3.6 V
- Class-D: 2.7 V–5.5 V (SPKVDD ≥ AVDD)
5-mm × 5-mm 32-VQFN Package

Sampling rate (max) (kHz)	192
Control interface	I2C
Architecture	Class-D
Operating temperature range (°C)	-40 to 85
Rating	Catalog

VQFN (RHB)

25 mm² 5 x 5
