TLV320AIC3120

正在供货

具有 miniDSP 和 2.5W 单声道 D 级扬声器放大器的低功耗音频编解码器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The TLV320AIC3120 device is a low-power, highly integrated, high-performance codec which features a mono audio DAC and mono audio ADC.

The TLV320AIC3120 device features a high-performance audio codec with 24-bit mono playback and mono record functionality. The device integrates several analog features, such as a microphone interface, headphone drivers, and speaker drivers. The TLV320AIC3120 device has a fully programmable miniDSP for digital audio processing. The digital audio data format is programmable to work with popular audio standard protocols (I²S, left-justified and right-justified) in master, slave, DSP, and TDM modes. Bass boost, treble, or EQ are supported by the programmable digital signal-processing blocks (PRB). An on-chip PLL provides the high-speed clock needed by the digital signal-processing block. The volume level is controlled either by pin control or by register control. The audio functions are controlled using the I²C serial bus.

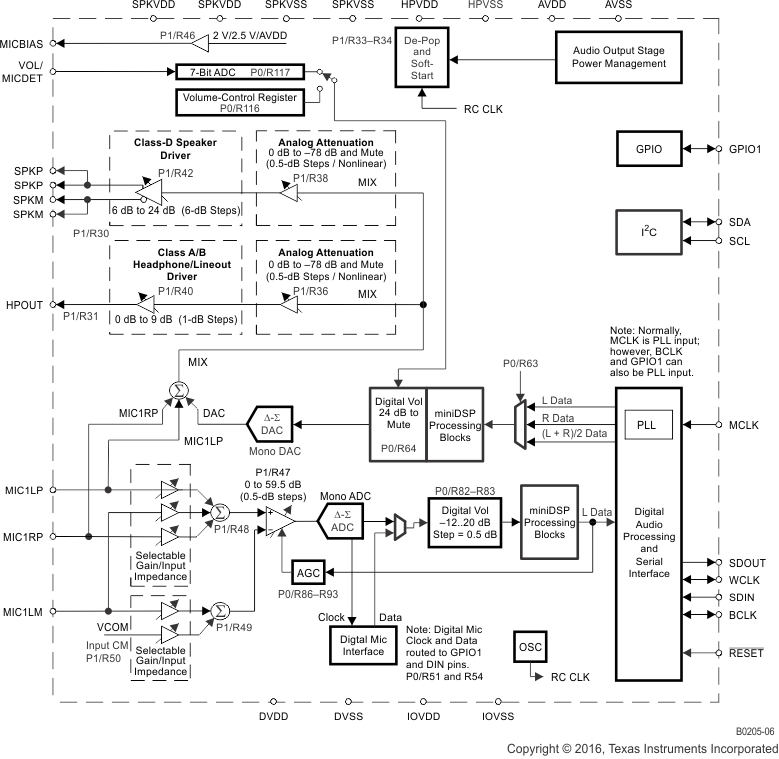

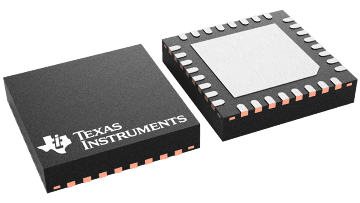

The TLV320AIC3120 device is available in a 32-pin VQFN package.

Mono Audio DAC With 95-dB SNR
Mono Audio ADC With 90-dB SNR
Supports 8-kHz to 192-kHz Separate DAC and ADC Sample Rates
Instruction-Programmable Embedded miniDSP
Mono Class-D BTL Speaker Driver (2.5 W Into 4 Ω or 1.6 W Into 8 Ω) Output
Mono Headphone/Lineout Outputs
One Differential or Three Single-Ended Inputs With Mixing and Level Control
Microphone With Bias, Preamp PGA, and AGC
Built-in Digital Audio Processing Blocks (PRB) With User-Programmable Biquad, FIR Filters, and DRC
Bass Boost/Treble/EQ With up to Five Biquads for Record and up to Six Biquads for Playback
Digital Mixing Capability
Pin Control or Register Control for Digital Playback Volume Control Settings
Programmble PLL for Flexible Clock Generation
I²S, Left-Justified, Right-Justified, DSP, and TDM Audio Interfaces
I²C Control With Register Auto-Increment
Full Power-Down Control
Power Supplies:
- Analog: 2.7 V–3.6 V
- Digital Core: 1.65 V–1.95 V
- Digital I/O: 1.1 V–3.6 V
- Class-D: 2.7 V–5.5V (SPKVDD ≥ AVDD)
5-mm × 5-mm 32-QFN Package

Number of ADC channels	1
Number of DAC channels	1
Digital audio interface	DSP, I2S, L, R, TDM
Analog inputs	3
Analog outputs	2
Sampling rate (max) (kHz)	192
Rating	Catalog
Features	MiniDSP, Mono Class-D amplifier, Mono headphone amplifier, Phase-locked loop (PLL)
ADC SNR (typ) (dB)	90
DAC SNR (typ) (dB)	95
Operating temperature range (°C)	-40 to 85

VQFN (RHB)

25 mm² 5 x 5
