The TS5A22366 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device features negative signal capability that allows signals below ground to pass through the switch without distortion.
The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications.

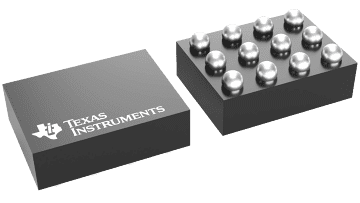

The TS5A22366 is available is a ultra small 1.6 mm × 1.2 mm wafer-chip-scale package (WCSP) (0.4 mm pitch).
| Protocols | Analog Audio |
| Configuration | 2 |
| Number of channels | 2 |
| Bandwidth (MHz) | 32 |
| Supply voltage (max) (V) | 5.5 |
| Supply voltage (min) (V) | 2.75 |
| Ron (typ) (mΩ) | 700 |
| Input/output voltage (min) (V) | -3.25 |
| Input/output voltage (max) (V) | 5.5 |
| Supply current (typ) (µA) | 6 |
| ESD HBM (typ) (kV) | 2.5 |
| Operating temperature range (°C) | -40 to 85 |
| Crosstalk (dB) | -70 |
| ESD CDM (kV) | 1 |
| Input/output continuous current (max) (mA) | 150 |
| COFF (typ) (pF) | 48 |
| CON (typ) (pF) | 176 |
| Off isolation (typ) (dB) | -70 |
| OFF-state leakage current (max) (µA) | 0.375 |
| Ron (max) (mΩ) | 2000 |
| Ron channel match (max) (Ω) | 1 |
| RON flatness (typ) (Ω) | 0.0135 |
| Turnoff time (disable) (max) (ns) | 206 |
| Turnon time (enable) (max) (ns) | 470 |
| VIH (min) (V) | 1.05 |
| VIL (max) (V) | 0.65 |
| DSBGA (YFC) | 12 | 1.8369 mm² 1.57 x 1.17 |
