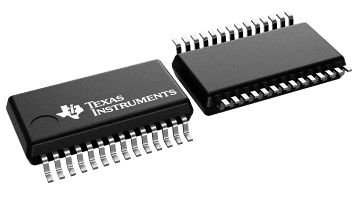

SRC4190-Q1

正在供货

汽车类 192kHz 立体声异步采样速率转换器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The SRC4190 is an asynchronous sample rate converter designed for professional and broadcast audio applications. The SRC4190 combines a wide input-to-output sampling ratio with outstanding dynamic range and low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow the SRC4190 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.

The SRC4190 is a standalone pin-programmed device, with control pins for mode, data format, mute, bypass, and low group delay functions.

The SRC4190 may be operated from a single 3.3-V power supply. A separate digital I/O supply (V_IO) operates over the 1.65-V to 3.6-V supply range, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices. The SRC4190 is available in an SSOP-28 package.

Qualified for Automotive Applications
Automatic Sensing of the Input-To-Output Sampling Ratio
Wide Input-to-Output Sampling Range: 16:1 to 1:16
Supports Input and Output Sampling Rates up to 212 kHz
Dynamic Range: 128 dB (–60 dBFS Input,
BW = 20 Hz to f_S/2, A-Weighted)
THD+N: –125 db (0 dBFS Input,
BW = 20 Hz to f_S/2)
Attenuates Sampling and Reference Clock Jitter
High Performance, Linear Phase Digital Filtering
Flexible Audio Serial Ports
Master or Slave Mode Operation
Supports I²S, Left Justified, Right Justified,
and TDM Data Formats
Supports 16, 18, 20, or 24-Bit Audio Data
TDM Mode Allows Daisy Chaining of up to Eight Devices
Supports 24-, 20-, 18-, or 16-Bit Input and Output Data
All Output Data Is Dithered From the Internal 28-Bit Data Path
Low Group Delay Option for Interpolation Filter
Soft Mute Function
Bypass Mode
Power Down Mode
Operates From a Single 3.3-V Power Supply
Small SSOP-28 Package
Pin Compatible With the SRC4192, AD1895, and AD1896
APPLICATIONS
- Digital Mixing Consoles
- Digital Audio Workstations
- Audio Distribution Systems
- Broadcast Studio Equipment
- High-End A/V Receivers
- General Digital Audio Processing

Number of SRC channels	2
Digital audio interface	I2S, L, R, TDM
Dynamic range (dB)	128
Digital supply (up to 5 V) (V)	3 - 3.6
THD+N (dB)	-125
Control mode	H/W
Power supply (V)	3.3
Control interface	H/W
Audio data format	I2S, Normal, TDM
Rating	Automotive
Operating temperature range (°C)	-40 to 85
Sampling rate (max) (kHz)	212

SSOP (DB)

79.56 mm² 10.2 x 7.8
