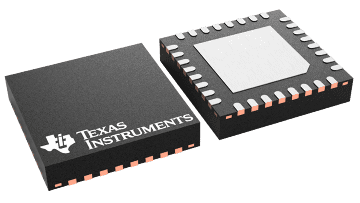

The TPA6047A4 is a stereo audio power amplifier and DirectPath headphone amplifier in a thermally enhanced, space-saving, 32-pin QFN package. The speaker amplifier is capable of driving 2.1 W per channel continuously into 4-Ω loads at 5 V. The headphone amplifier achieves a minimum of 100 mW at 10% THD+N from a 5-V supply. A built-in internal 4-step gain control for the speaker amplifier and a fixed -1.5 V/V gain for the headphone amplifier minimizes external components needed.
Independent shutdown control and dedicated inputs for the speaker and headphone allow the TPA6047A4 to simultaneously drive both headphones and internal speakers. Differential inputs to the speaker amplifiers offer superior power-supply and common-mode noise rejection.
| Audio input type | Analog Input |
| Architecture | Class-AB |
| Speaker channels (max) | Stereo |
| Rating | Catalog |
| Power stage supply (max) (V) | 5.5 |
| Power stage supply (min) (V) | 4.5 |
| Load (min) (Ω) | 4 |
| Output power (W) | 2 |
| SNR (dB) | 99 |
| THD + N at 1 kHz (%) | 0.06 |
| Iq (typ) (mA) | 5 |
| Control interface | Hardware |
| Closed/open loop | Closed |
| Analog supply (min) (V) | 4.5 |
| Analog supply voltage (max) (V) | 5.5 |
| PSRR (dB) | 65 |
| Operating temperature range (°C) | -40 to 85 |
| VQFN (RHB) | 32 | 25 mm² 5 x 5 |
