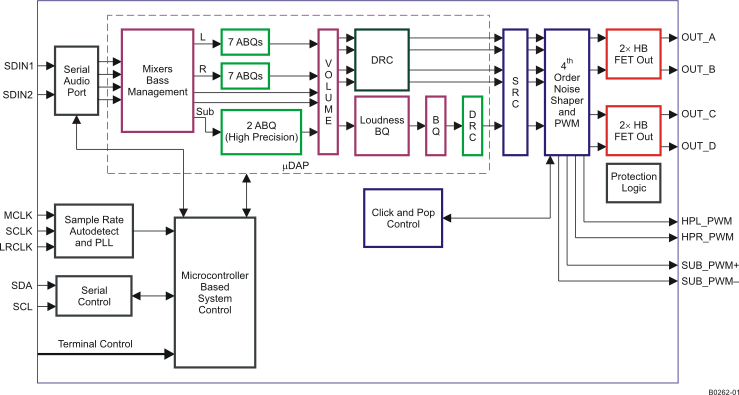

• Audio Input/Output
  • 20-W Into an 8- Load From an 18-V Supply
  • Wide Power-Supply Range From (8 V to 23 V)
  • Efficient Class-D Operation Eliminates Need for Heat Sinks
  • Requires Only Two Power-Supply Rails
  • Two Serial Audio Inputs (Four Audio Channels)
  • Supports 32-kHz–192-kHz Sample Rates (LJ/RJ/I²S)
  • Headphone PWM Outputs
  • Subwoofer PWM Outputs
• Audio/PWM Processing
  • Independent Channel Volume Controls With 24-dB to –100-dB Range
  • Soft Mute (50% Duty Cycle)
  • Programmable Dynamic Range Control
  • 16 Adaptable Biquads for Speaker EQ
    • Seven Biquads for Left and Right Channels
    • Two Biquads for Subwoofer Channel
  • Adaptive Coefficients for DRC Filters
  • Programmable Input and Output Mixers
  • DC Blocking Filters
  • Loudness Compensation for Subwoofer
  • Automatic Sample Rate Detection and Coefficient Banking for DRC and EQ
• General Features
  • Serial Control Interface Operational Without MCLK
  • Factory-Trimmed Internal Oscillator Enables Automatic Detection of Incoming Sample Rates
  • Thermal and Short-Circuit Protection
• Benefits
  • EQ: Speaker Equalization Improves Audio Performance
  • DRC: Dynamic Range Compression. Enables Power Limiting, Speaker Protection, Easy Listening, Night-Mode Listening
  • Autobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write Any Coefficients to the Part When Sample Rate Changes.
  • Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention
