The TPA2013D1 device is a high efficiency Class-D audio power amplifier with an integrated boost converter. It drives up to 2.7 W (10% THD+N) into a 4-Ω speaker. With 85% typical efficiency, the TPA2013D1 helps extend battery life when playing audio.

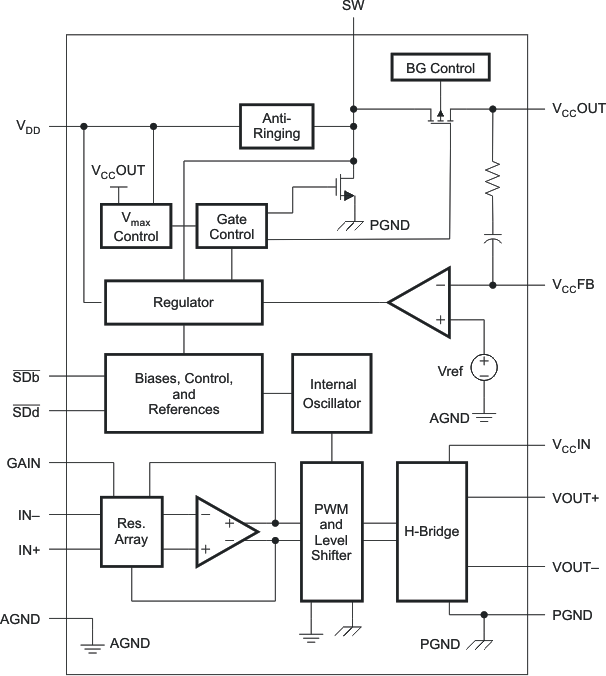

The built-in boost converter generates the voltage rail for the Class-D amplifier. This provides a louder audio output than a stand-alone amplifier connected directly to the battery. It also maintains a consistent loudness, regardless of battery voltage. Additionally, the boost converter can be used to supply external devices.
The TPA2013D1 has an integrated low pass filter to improve RF rejection and reduce out-of-band noise, increasing the signal-to-noise ratio (SNR). A built-in PLL synchronizes the boost converter and Class-D switching frequencies, thus eliminating beat frequencies and improving audio quality. All outputs are fully protected against shorts to ground, power supply, and output-to-output shorts.
| Audio input type | Analog Input |
| Architecture | Class-D Boosted |
| Speaker channels (max) | Mono |
| Rating | Catalog |
| Power stage supply (max) (V) | 5.5 |
| Power stage supply (min) (V) | 1.8 |
| Load (min) (Ω) | 4 |
| Output power (W) | 2.7 |
| SNR (dB) | 95 |
| THD + N at 1 kHz (%) | 1 |
| Iq (typ) (mA) | 16.5 |
| Control interface | GPIO |
| Closed/open loop | Open |
| Analog supply (min) (V) | 2.3 |
| Analog supply voltage (max) (V) | 5.2 |
| PSRR (dB) | 95 |
| Operating temperature range (°C) | -40 to 85 |
| DSBGA (YZH) | 16 | 5.0625 mm² 2.25 x 2.25 |

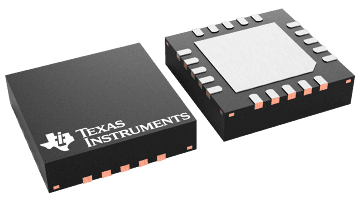

| VQFN (RGP) | 20 | 16 mm² 4 x 4 |
