• 24-Bit Resolution
• Analog Performance:
  • Dynamic Range: 105 dB Typical
  • SNR: 105 dB Typical
  • THD+N: 0.002% Typical
  • Full-Scale Output: 3.9 V_PP Typical
• 4x/8x Oversampling Interpolation Filter:
  • Stop-Band Attenuation: -50 dB
  • Passband Ripple: ±0.04 dB
• Sampling Frequency: 5 kHz to 200 kHz
• System Clock: 128 f_S, 192 f_S, 256 f_S, 384 f_S, 512 f_S, 768 f_S, or 1152 f_S with Autodetect
• Zero Flags for Selectable Channel Combinations
• Serial Port (SPI/I²C) for Mode Control
• User-Programmable Functions:
  • Flexible Audio Data Formats
    • Right-Justified, I²S, and Left-Justified
    • 16-, 18-, 20-, and 24-Bit Audio Data
  • Digital Attenuation: Mode Selectable
    • 0 dB to -63 dB, 0.5-dB/step
    • 0 dB to -100 dB, 1-dB/step
  • Soft Mute
  • Digital De-Emphasis
  • Digital Filter Roll-Off: Sharp or Slow
• Single Power-Supply Operation: 5-V Analog, 5-V Digital

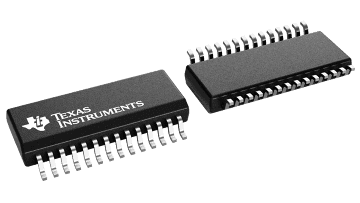

• Package: SSOP-28 (150 mil)
• Pin-Compatible with PCM1780
• APPLICATIONS
  • Integrated A/V Receivers
  • DVD Movie and Audio Players
  • HDTV Receivers
  • Car Audio Systems
  • DVD Add-On Cards for High-End PCs
  • Digital Audio Workstations
  • Other Multichannel Audio Systems
