SRC4184

正在供货

4 通道异步采样速率转换器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The SRC4184 is a four-channel, asynchronous sample rate converter (ASRC), designed for professional and broadcast audio applications. The SRC4184 combines a wide input-to-output sampling ratio with outstanding dynamic range and ultra low distortion. The input and output serial ports support the most common audio data formats, as well as a time division multiplexed (TDM) format. This allows the SRC4184 to interface to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.

The SRC4184 may be operated in Hardware mode as a standalone pin-programmed device, with dedicated control pins for serial port mode, audio data format, soft mute, bypass, and digital filtering functions. Alternatively, the SRC4184 may be operated in Software mode, where a four-wire serial peripheral interface (SPI) port provides access to internal control and status registers.

The SRC4184 operates from either a +1.8V core supply or a +3.3V core supply. When operating from +3.3V, the +1.8V required by the core logic is derived from an internal voltage regulator. The SRC4184 also requires a digital I/O supply, which operates from +1.65V to +3.6V. The SRC4184 is available in a TQFP-64 package.

AUTOMATIC SENSING OF INPUT-TO-OUTPUT SAMPLING RATIO
WIDE INPUT-TO-OUTPUT SAMPLING RANGE: 16:1 to 1:16
SUPPORTS INPUT AND OUTPUT SAMPLING RATES UP TO 212kHz
DYNAMIC RANGE: 128dB (–60dbFS Input, BW = 20Hz to f_s/2, A-Weighted)
THD+N: –125dB (0dbFS Input, BW = 20Hz to f_s/2)
HIGH-PERFORMANCE, LINEAR PHASE DIGITAL FILTERING
FLEXIBLE AUDIO SERIAL PORTS:
- Master or Slave Mode Operation
- Supports I²S, Left-Justified, Right-Justified, and TDM Data Formats
- TDM Mode Allows Daisy-Chaining of Up to Four Devices
SUPPORTS 24-, 20-, 18-, or 16-BIT INPUT AND OUTPUT DATA
- All Output Data is Dithered from the Internal 28-Bit Data Path
SERIAL PERIPHERAL INTERFACE (SPI)™ PORT SUPPORTS REGISTER READ AND WRITE OPERATIONS IN SOFTWARE MODE
BYPASS MODE
- Routes Input Port Data Directly to the Output Port
FOUR GROUP DELAY OPTIONS FOR THE INTERPOLATION FILTER
DIRECT DOWNSAMPLING OPTION FOR THE DECIMATION FILTER
DIGITAL DE-EMPHASIS FILTER
- User-Selectable for 32kHz, 44.1kHz, and 48kHz Sampling Rates
SOFT MUTE FUNCTION
PROGRAMMABLE DIGITAL OUTPUT ATTENUATION (SOFTWARE MODE ONLY)
- 256 Steps: 0dB to –127.5dB with 0.5dB Steps
INPUT-TO-OUTPUT SAMPLING RATIO READBACK (SOFTWARE MODE ONLY)
POWER-DOWN MODES
SUPPORTS OPERATION FROM A SINGLE +1.8V or +3.3V POWER SUPPLY
AVAILABLE IN A TQFP-64 PACKAGE
APPLICATIONS
- DIGITAL MIXING CONSOLES
- DIGITAL AUDIO WORKSTATIONS
- AUDIO DISTRIBUTION SYSTEMS
- BROADCAST STUDIO EQUIPMENT
- GENERAL DIGITAL AUDIO PROCESSING

U.S. Patent No. 7,262,716.
All trademarks are the property of their respective owners.

Number of SRC channels	4
Digital audio interface	I2S, L, R, TDM
Dynamic range (dB)	128
Digital supply (up to 5 V) (V)	1.65 - 2, 3 - 3.6
THD+N (dB)	-125
Control mode	SW (SPI)
Power supply (V)	1.8, 3.3
Control interface	SPI
Audio data format	I2S, Normal, TDM
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Sampling rate (max) (kHz)	212

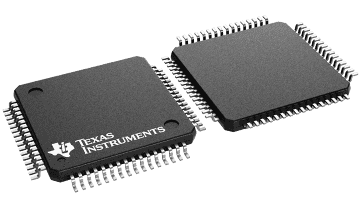

TQFP (PAG)

144 mm² 12 x 12
