• Two 16-Bit Analog-to-Digital Converters (ADCs)
• Two 16-Bit Digital-to-Analog Converters (DACs)
• Programmable Input/Output Gain
• Analog Crosspoint to Connect the Two Coders/Decoders (Codecs) to Any of the I/O Ports –   Controlled Through the Serial Port or the Inter-Integrated Circuit (I²C) Bus
• 8-Bit A-Law/µ-Law Companded Data or 16-Bit Linear Data Complying With G.711 Standard
• Filters Comply With G.712 and G.722 Standards
• Programmable Analog-to-Digital and Digital-to-Analog Conversion Rate
• Typical 77-dB Signal-to-Noise + Distortion for ADC
• Typical 78-dB Signal-to-Noise + Distortion for DAC
• Supports 8- and 16-kHz Sampling Rates
• Preamplifiers for Microphone, Handset, Headset, and Speakerphone Gain Selectable Via the Serial Port or I²C Bus
• 2.5-V Microphone Bias Voltage
• Seamless Interface to a Single Multichannel Buffered Serial Port (McBSP) of a C54x™ or a C6x Digital Signal Processor (DSP)
• Four TLV320AIC22C ICs Can Be Cascaded Together to Allow up to Eight Channels
• 2s-Complement Data Format
• Differential Outputs
• Typical Low Crosstalk < –85 dB
• Hardware/Software Power Down
• Independent Power Down for Drivers
• Single 3.3-V Supply Operation
• 204-mW Typical Power Consumption

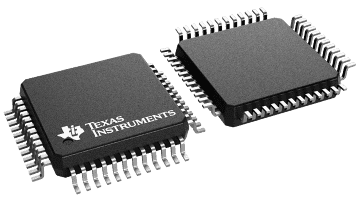

• Available in 48-Terminal Low-Profile Plastic Quad Flatpack (LQFP) Package

C54x and TMS320C54x are trademarks of Texas Instruments Incorporated.
