SRC4190

正在供货

192kHz 立体声异步采样速率转换器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

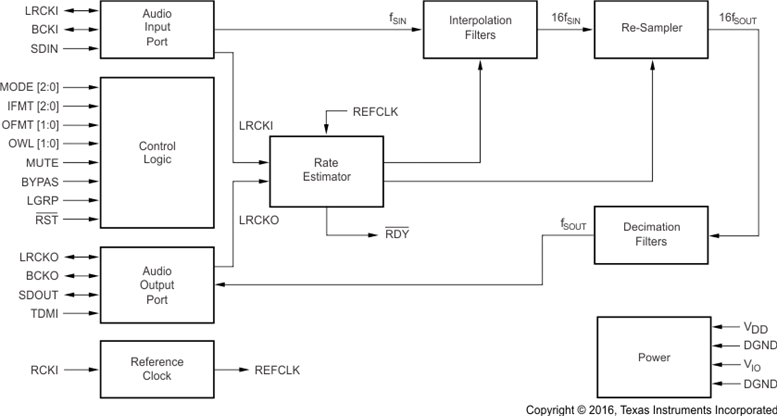

The SRC4190 device is an asynchronous sample rate converter designed for professional and broadcast audio applications. The SRC4190 combines a wide input-to-output sampling ratio with outstanding dynamic range and low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow the SRC4190 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.

The SRC4190 is a standalone pin-programmed device, with control pins for mode, data format, mute, bypass, and low group delay functions.

The SRC4190 may be operated from a single 3.3-V power supply. A separate digital I/O supply (VIO) operates with a 1.65-V to 3.6-V supply, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices. The SRC4190 is available in a 28-pin SSOP package.

Automatic Sensing of the Input-to-Output Sampling Ratio
Wide Input-to-Output Sampling Range: 16:1 to 1:16
Supports Input and Output Sampling Rates up to 212 kHz
Dynamic Range: 128 dB (–60-dB f_S Input, BW = 20 Hz to f_S / 2, A-Weighted)
THD+N: –125 dB (0-dB f_S Input, BW = 20 Hz to f_S / 2)
Attenuates Sampling and Reference Clock Jitter
High-Performance, Linear Phase Digital Filtering
Flexible Audio Serial Ports:
- Master or Slave Mode Operation Supports I²S, Left Justified, Right Justified, and TDM Data Formats
- Supports 16-, 18-, 20-, or 24-Bit Audio Data, TDM Mode Allows Daisy Chaining of up to Eight Devices
Supports 24-, 20-, 18-, or 16-Bit Input and Output
- All Output Data is Dithered from the Internal 28-Bit Data Path
Low Group Delay Option for Interpolation Filter
Soft Mute Function
Bypass Mode
Power-Down Mode
Operates from a Single 3.3-V Power Supply
Small 28-Pin SSOP Package
Pin Compatible With the SRC4192, AD1895, and AD1896 U.S. Patent No. 7,262,716 See for details.

Number of SRC channels	2
Digital audio interface	I2S, L, R, TDM
Dynamic range (dB)	128
Digital supply (up to 5 V) (V)	3 - 3.6
THD+N (dB)	-125
Control mode	H/W
Power supply (V)	3.3
Control interface	H/W
Audio data format	I2S, Normal, TDM
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Sampling rate (max) (kHz)	212

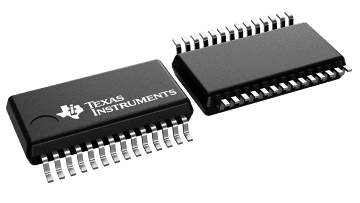

SSOP (DB)

79.56 mm² 10.2 x 7.8
