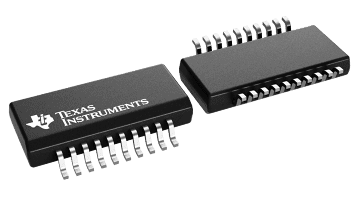

The PLL1707
are low cost, phase-locked loop (PLL) multiclock generators. The PLL1707 and PLL1708 can generate four system clocks from a 27-MHz reference input frequency. The clock outputs of the PLL1707 can be controlled by sampling frequency-control pins and those of the PLL1708 can be controlled through serial-mode control pins. The device gives customers both cost and space savings by eliminating external components and enables customers to achieve the very low-jitter performance needed for high performance audio DACs and/or ADCs. The PLL1707 and PLL1708 are ideal for MPEG-2 applications which use a 27-MHz master clock such as DVD recorders, HDD recorders, DVD add-on cards for multimedia PCs, digital HDTV systems, and set-top boxes.
The PLL1707 and PLL1708 use the same die and they are electrically identical except for mode control.
| Function | Clock generator |
| Number of outputs | 4 |
| Output frequency (max) (MHz) | 0.096 |
| Core supply voltage (V) | 3.3 |
| Output supply voltage (V) | 3.3 |
| Input type | LVCMOS |
| Output type | LVCMOS |
| Operating temperature range (°C) | -25 to 85 |
| Features | 3.3-V VCC/VDD |
| Rating | Catalog |
| SSOP (DBQ) | 20 | 51.9 mm² 8.65 x 6 |
