The TPA6030A4 is designed to drive 3 W into 16-
speakers using a surface-mount package without the need for an external heatsink. These features make it ideal for 15" – 17" LCD monitors, small multimedia speakers, and notebook computers.
To simplify system design, the speaker volume level is adjusted by applying a dc voltage to the VOLUME terminal. The delta between speaker volume and headphone volume can be adjusted by applying a dc voltage to the SEDIFF terminal. To avoid an unexpected high volume level through the headphones, a third terminal, SEMAX, limits the headphone volume level when a dc voltage is applied. Integrated depop circuitry and the fully differential design minimize pops, clicks, and unwanted noise to provide a high level of audio performance.

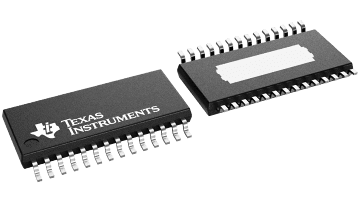

The device is available in a 28-pin TSSOP PowerPAD™ package. The PowerPAD™ package is designed to transfer heat into the ground plane, eliminating the need for external heat sinks—minimizing solution cost and size.
PowerPAD is a trademark of Texas Instruments.
| Audio input type | Analog Input |
| Architecture | Class-AB |
| Speaker channels (max) | Stereo |
| Rating | Catalog |
| Power stage supply (max) (V) | 15 |
| Power stage supply (min) (V) | 7 |
| Load (min) (Ω) | 16 |
| Output power (W) | 3 |
| SNR (dB) | 102.5 |
| THD + N at 1 kHz (%) | 0.1 |
| Iq (typ) (mA) | 11 |
| Control interface | Hardware |
| Closed/open loop | Closed |
| Analog supply (min) (V) | 7 |
| Analog supply voltage (max) (V) | 15 |
| PSRR (dB) | 60 |
| Operating temperature range (°C) | -40 to 85 |
| HTSSOP (PWP) | 28 | 62.08 mm² 9.7 x 6.4 |
