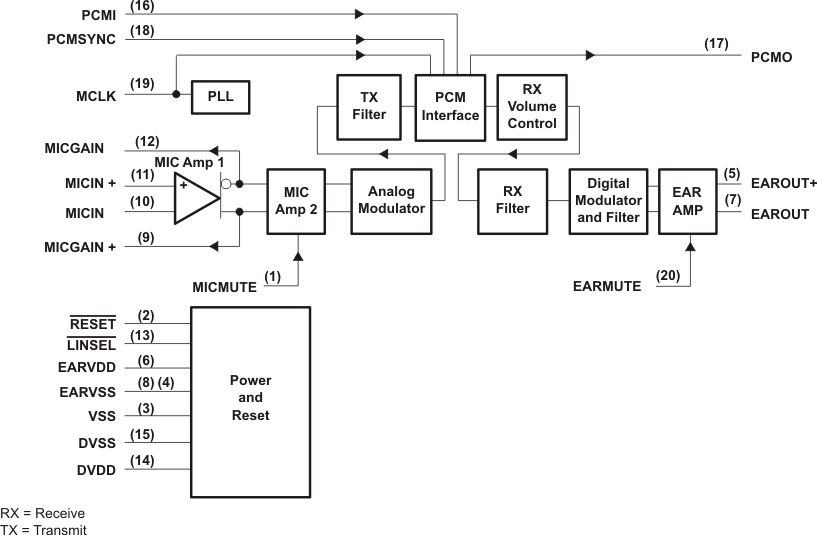

The TLV320AIC1106 PCM codec is designed to perform transmit encoding analog-to-digital (A/D) conversion, receive decoding digital-to-analog (D/A) conversion, and transmit and receive filtering for voice-band communications systems. The TLV320AIC1106 device operates in either the 13-bit linear or 8-bit companded (u-law) mode. The PCM codec generates its own internal clocks from a 2.048-MHz master clock input.
| Number of ADC channels | 1 |
| Number of DAC channels | 1 |
| Digital audio interface | PCM |
| Analog inputs | 1 |
| Analog outputs | 1 |
| Sampling rate (max) (kHz) | 8 |
| Rating | Catalog |
| ADC SNR (typ) (dB) | 0 |
| DAC SNR (typ) (dB) | 0 |
| Operating temperature range (°C) | -40 to 85 |
| TSSOP (PW) | 20 | 41.6 mm² 6.5 x 6.4 |
