The LM4755 is a stereo audio amplifier capable of delivering 11W per channel of continuous average output power to a 4Ω load or 7W per channel into 8Ω using a single 24V supply at 10% THD+N. The internal mute circuit and pre-set gain resistors provide for a very economical design solution.
Output power specifications at both 20V and 24V supplies and low external component count offer high value to consumer electronic manufacturers for stereo TV and compact stereo applications. The LM4755 is specifically designed for single supply operation.
All trademarks are the property of their respective owners.
| Audio input type | Analog Input |
| Architecture | Class-AB |
| Speaker channels (max) | Stereo |
| Rating | Catalog |
| Power stage supply (max) (V) | 40 |
| Power stage supply (min) (V) | 9 |
| Load (min) (Ω) | 4 |
| Output power (W) | 11 |
| THD + N at 1 kHz (%) | 0.08 |
| Iq (typ) (mA) | 5 |
| Control interface | Hardware |
| Closed/open loop | Closed |
| Analog supply (min) (V) | 9 |
| Analog supply voltage (max) (V) | 40 |
| PSRR (dB) | 50 |
| Operating temperature range (°C) | -20 to 80 |

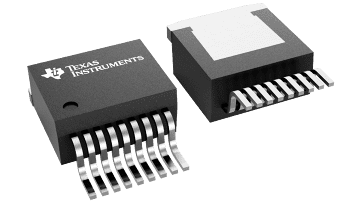

| TO-263 (KTW) | 9 | 145.796 mm² 10.16 x 14.35 |
