• 2.7-V to 3.3-V Operation
• Designed for Analog and Digital Wireless Handsets and Telecommunications Applications
• Two Differential Microphone Inputs
• Differential Earphone Outputs and One Single-Ended Earphone Output
• Earphone and Microphone Mute
• Programmable Transmit, Receive, and Sidetone Paths With Extended Gain and Attenuation Ranges
• Programmable for 15-Bit Linear Data or 8-Bit Companded (u-law and A-law) Mode
• Supports PCM Clock Rates of 128 kHz and 2.048 MHz
• Pulse Density Modulated (PDM) Buzzer Output
• On-Chip I²C Bus, Which Provides Simple, Standard, Two-Wire Serial Interface With Digital ICs
• Dual-Tone Multifrequency (DTMF) and Single-Tone Generator Capable of Up to 8-kHz Tone With Three Selectable Resolutions of 7.8125 Hz, 15.625 Hz, and 31.25 Hz
• 2-Channel Auxiliary Multiplexer (MUX) (Analog Switch)
• Capable of Driving 32 Speaker
• Programmable Power Down Modes
• Pin Compatible to the TLV320AIC1103 and TLV320AIC1109 Devices for TQFP Only

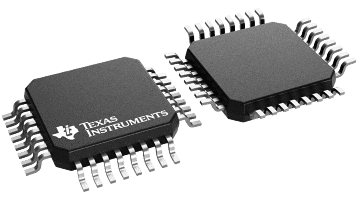

• Available in a 32-Pin Thin Quad Flatpack (TQFP) Package and MicroStar Junior™ BG
• APPLICATIONS
  • Digital Handset
  • Digital Headset
  • Cordless Phones
  • Digital PABX
  • Digital Voice Recording>

These options are available on some devices. Please see the table of comparison for the last two generations of PCM codecs.
MicroStar Junior is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
