The TPA0233 is a 2-W mono bridge-tied-load (BTL) amplifier designed to drive speakers with as low as 4-
speaker.
The gain of the input stage is set by the user-selected input resistor and a 50-k/ RI in BTL mode. The input terminals are high-impedance CMOS inputs, and can be used as summing nodes.

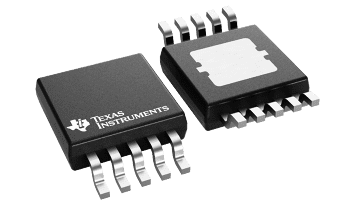

The TPA0233 is available in the 10-pin thermally-enhanced MSOP package (DGQ) and operates over an ambient temperature range of –40°C to 85°C.
| Audio input type | Analog Input |
| Architecture | Class-AB |
| Speaker channels (max) | Mono |
| Rating | Catalog |
| Power stage supply (max) (V) | 5.5 |
| Power stage supply (min) (V) | 2.5 |
| Load (min) (Ω) | 4 |
| Output power (W) | 2 |
| SNR (dB) | 93 |
| THD + N at 1 kHz (%) | 0.2 |
| Iq (typ) (mA) | 4 |
| Control interface | Hardware |
| Closed/open loop | Open |
| Analog supply (min) (V) | 2.5 |
| Analog supply voltage (max) (V) | 5.5 |
| PSRR (dB) | 58 |
| Operating temperature range (°C) | -40 to 125 |
| HVSSOP (DGQ) | 10 | 14.7 mm² 3 x 4.9 |
