The LM4808 is a dual audio power amplifier capable of delivering 105mW per channel of continuous average power into a 16Ω load with 0.1% (THD+N) from a 5V power supply.
Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the LM4808 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems.

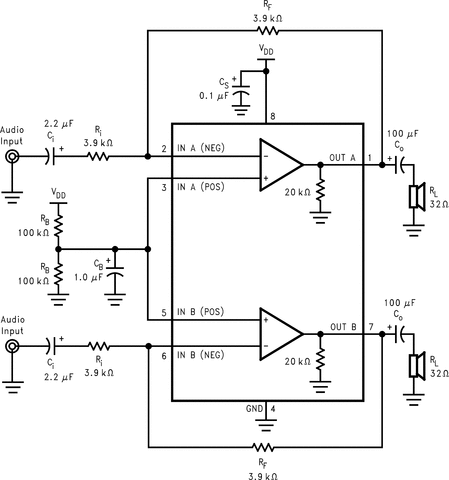

The unity-gain stable LM4808 can be configured by external gain-setting resistors.
All trademarks are the property of their respective owners.
| Output power (W) | 0.105 |
| Analog supply (min) (V) | 2 |
| Analog supply voltage (max) (V) | 5.5 |
| Load (min) (Ω) | 16 |
| PSRR (dB) | 89 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Headphone channels | Stereo |
| Volume control | No |
| Architecture | Class-AB |
| Iq per channel (typ) (mA) | 0.6 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
