The TPA1517 is a stereo audio power amplifier that contains two identical amplifiers capable of delivering 6 W per channel of continuous average power into a 4-

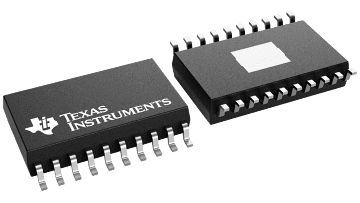

load at 10% THD+N or 5 W per channel at 1% THD+N. The gain of each channel is fixed at 20 dB. The amplifier features a mute/standby function for power-sensitive applications. The amplifier is available in the PowerPAD™ 20-pin surface-mount thermally-enhanced package (DWP) that reduces board space and facilitates automated assembly while maintaining exceptional thermal characteristics. It is also available in the 20-pin thermally enhanced DIP package (NE).
PowerPAD is a trademark of Texas Instruments
| Audio input type | Analog Input |
| Architecture | Class-AB |
| Speaker channels (max) | Stereo |
| Rating | Catalog |
| Power stage supply (max) (V) | 18 |
| Power stage supply (min) (V) | 9.5 |
| Load (min) (Ω) | 4 |
| Output power (W) | 6 |
| SNR (dB) | 84 |
| THD + N at 1 kHz (%) | 0.1 |
| Iq (typ) (mA) | 0.007 |
| Control interface | Hardware |
| Analog supply (min) (V) | 9.5 |
| Analog supply voltage (max) (V) | 18 |
| PSRR (dB) | 65 |
| Operating temperature range (°C) | -40 to 85 |
| HSOIC (DWP) | 20 | 133.444125 mm² 12.825 x 10.405 |
| PDIP (NE) | 20 | 224.0214 mm² 24.51 x 9.14 |
