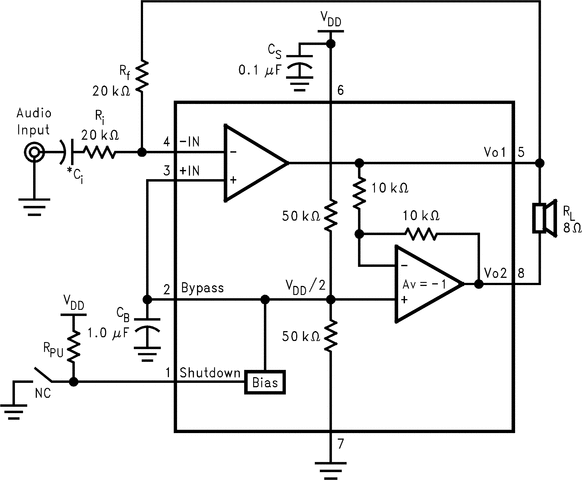

The LM4862 is a bridge-connected audio power amplifier capable of delivering typically 675mW of continuous average power to an 8Ω load with 1% THD+N from a 5V power supply.
Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. Since the LM4862 does not require output coupling capacitors, bootstrap capacitors, or snubber networks, it is optimally suited for low-power portable systems.
The LM4862 features an externally controlled, low-power consumption shutdown mode, as well as an internal thermal shutdown protection mechanism.
The unity-gain stable LM4862 can be configured by external gain-setting resistors.
| Audio input type | Analog Input |
| Architecture | Class-AB |
| Speaker channels (max) | Mono |
| Rating | Catalog |
| Power stage supply (max) (V) | 5.5 |
| Power stage supply (min) (V) | 2.7 |
| Load (min) (Ω) | 8 |
| Output power (W) | 0.83 |

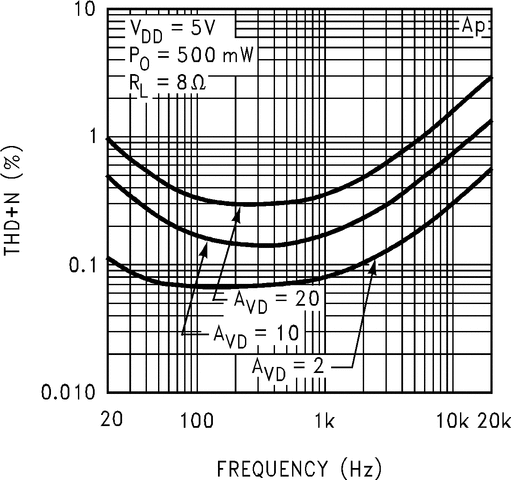

| THD + N at 1 kHz (%) | 0.55 |
| Iq (typ) (mA) | 3.6 |
| Control interface | Hardware |
| Closed/open loop | Open |
| Analog supply (min) (V) | 2.7 |
| Analog supply voltage (max) (V) | 5.5 |
| PSRR (dB) | 50 |
| Operating temperature range (°C) | -40 to 85 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
