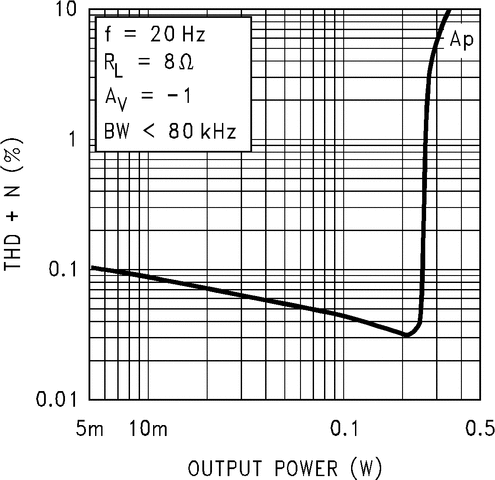

The LM4880 is a dual audio power amplifier capable of delivering typically 250mW per channel of continuous average power to an 8Ω load with 0.1% THD+N using a 5V power supply.
Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging.
Since the LM4880 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems.
The LM4880 features an externally controlled, low-power consumption shutdown mode, as well as an internal thermal shutdown protection mechanism.

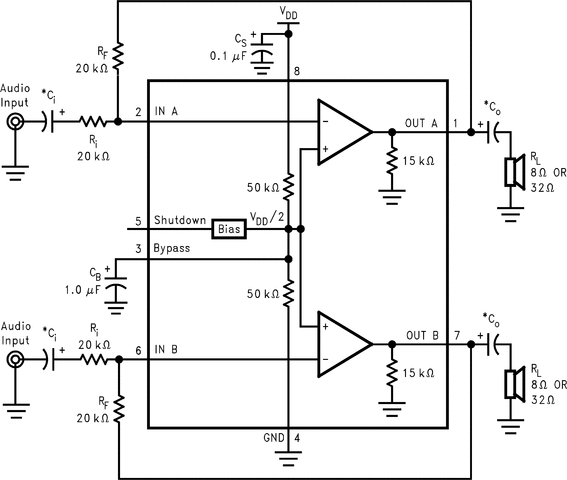

The unity-gain stable LM4880 can be configured by external gain-setting resistors.
All trademarks are the property of their respective owners.
| Output power (W) | 0.11 |
| Analog supply (min) (V) | 2.7 |
| Analog supply voltage (max) (V) | 5.5 |
| Load (min) (Ω) | 8 |
| PSRR (dB) | 50 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Headphone channels | Stereo |
| Volume control | No |
| Shutdown current (ISD) (µA) | 0.7 |
| Architecture | Class-AB |
| Iq per channel (typ) (mA) | 1.8 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
