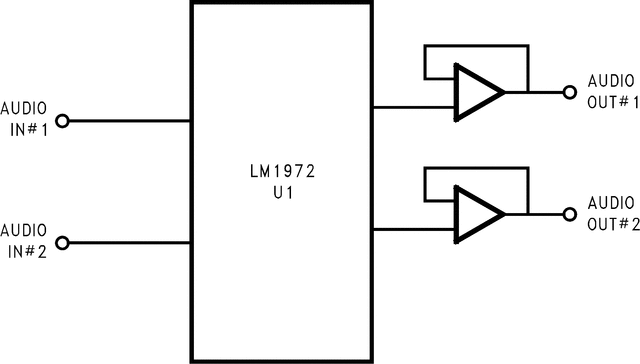

The LM1972 is a digitally controlled 2-channel 78dB audio attenuator fabricated on a CMOS process. Each channel has attenuation steps of 0.5dB from 0dB–47.5dB, 1.0dB steps from 48dB–78dB, with a mute function attenuating 104dB. Its logarithmic attenuation curve can be customized through software to fit the desired application.
The performance of a μPot is demonstrated through its excellent Signal-to-Noise Ratio, extremely low (THD+N), and high channel separation. Each μPot contains a mute function that disconnects the input signal from the output, providing a minimum attenuation of 96dB. Transitions between any attenuation settings are pop free.
The LM1972's 3-wire serial digital interface is TTL and CMOS compatible; receiving data that selects a channel and the desired attenuation level. The Data-Out pin of the LM1972 allows multiple μPots to be daisy-chained together, reducing the number of enable and data lines to be routed for a given application.
All trademarks are the property of their respective owners.

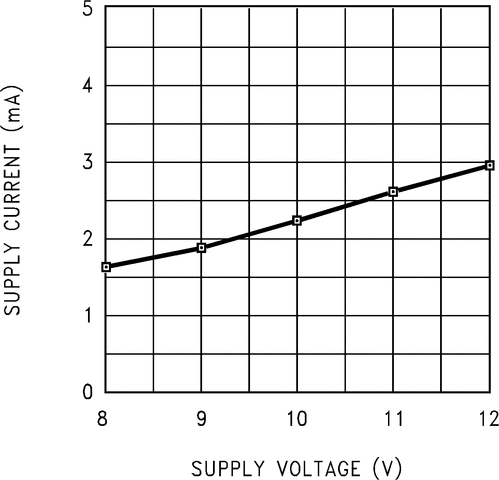

| Number of channels | 2 |
| Power supply (V) | 4.5 to 15 |
| Gain & attenuation (dB) | 0dB to -78dB with 0.5dB steps |
| THD + N at 1 kHz (%) | 0.0008 |
| Interchannel crosstalk at 1 kHz (dBFS) | -110 |
| Dynamic range (dB) | 115 |
| Operating temperature range (°C) | 0 to 70 |
| Features | 2 Channels, Digitally controlled audio attenuator |
| SOIC (DW) | 20 | 131.84 mm² 12.8 x 10.3 |
