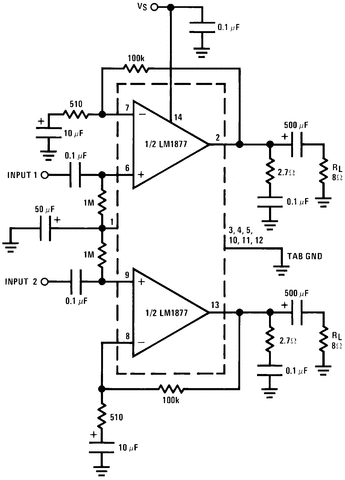

The LM1877 is a monolithic dual power amplifier designed to deliver 2W/channel continuous into 8Ω loads. The LM1877 is designed to operate with a low number of external components, and still provide flexibility for use in stereo phonographs, tape recorders and AM-FM stereo receivers. Each power amplifier is biased from a common internal regulator to provide high power supply rejection, and output Q point centering. The LM1877 is internally compensated for all gains greater than 10.
All trademarks are the property of their respective owners.
| Audio input type | Analog Input |
| Architecture | Class-AB |
| Speaker channels (max) | Stereo |
| Rating | Catalog |
| Power stage supply (max) (V) | 24 |
| Power stage supply (min) (V) | 6 |
| Load (min) (Ω) | 4 |
| Output power (W) | 11 |
| THD + N at 1 kHz (%) | 0.055 |
| Iq (typ) (mA) | 12.5 |
| Control interface | Hardware |
| Closed/open loop | Open |
| Analog supply (min) (V) | 6 |
| Analog supply voltage (max) (V) | 24 |
| PSRR (dB) | 65 |
| Operating temperature range (°C) | 0 to 70 |
| SOIC (NPA) | 14 | 92.8372375 mm² 8.9915 x 10.325 |
