您当前的位置: 首页 > 时钟和计时 > 时钟缓冲器 > CDCUA877

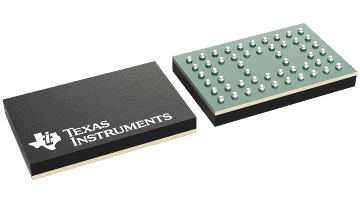

CDCUA877

CDCUA877

正在供货

适用于 DDR2 SDRAM 应用的 1.8V/1.9V 锁相环路时钟驱动器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The CDCUA877 is a high-performance, low-jitter, low-skew, zero-delay buffer that distributes a differential clock input pair (CK, CK) to ten differential pairs of clock outputs (Yn, Yn) and to one differential pair of feedback clock outputs (FBOUT, FBOUT). The clock outputs are controlled by the input clocks (CK, CK), the feedback clocks (FBIN, FBIN), the LVCMOS control pins (OE, OS), and the analog power input (AVDD). When OE is low, the clock outputs, except FBOUT/FBOUT, are disabled while the internal PLL continues to maintain its locked-in frequency. OS (output select) is a program pin that must be tied to GND or VDD. When OS is high, OE functions as previously described. When OS and OE are both low, OE has no affect on Y7/Y7, they are free running. When AVDD is grounded, the PLL is turned off and bypassed for test purposes.

When both clock inputs (CK, CK) are logic low, the device enters in a low power mode. An input logic detection circuit on the differential inputs, independent from input buffers, detects the logic low level and performs in a low power state where all outputs, the feedback, and the PLL are off. When the clock inputs transition from being logic low to being differential signals, the PLL turns back on, the inputs and the outputs are enabled, and the PLL obtains phase lock between the feedback clock pair (FBIN, FBIN) and the clock input pair (CK, CK) within the specified stabilization time.

The CDCUA877 is able to track spread spectrum clocking (SSC) for reduced EMI. This device operates from -40°C to 85°C).

  • 1.8-V/1.9-V Phase Lock Loop Clock Driver for Double Data Rate (DDR II) Applications
  • Spread Spectrum Clock Compatible
  • Operating Frequency: 125 MHz to 410 MHz
  • Application Frequency: 160 MHz to 410 MHz
  • Low Current Consumption: <200 mA Typ
  • Low Jitter (Cycle-Cycle): ±40 ps
  • Low Output Skew: 35 ps
  • Stabilization Time <6 µs
  • Distributes One Differential Clock Input to Ten Differential Outputs
  • 52-Ball µBGA (MicroStar Junior™ BGA, 0,65-mm pitch)
  • External Feedback Pins (FBIN, FBIN) are Used to Synchronize the Outputs to the Input Clockst
  • Meets or Exceeds CUA877/CAU878 Specification PLL Standard for PC2-3200/4300/5300/6400o
  • Fail-Safe Inputs

MicroStar Junior is a trademark of Texas Instruments.
FunctionMemory interface
Additive RMS jitter (typ) (fs)40
Output frequency (max) (MHz)410
Number of outputs10
Output supply voltage (V)1.8
Core supply voltage (V)1.8
Output skew (ps)30
FeaturesDDR2 PLL
Operating temperature range (°C)-40 to 85
RatingCatalog
Output typeLVCMOS
Input typeLVCMOS
NFBGA (NMK)5231.5 mm² 7 x 4.5
