TRF3761 is a family of high performance, highly integrated frequency synthesizers, optimized for high performance applications. The TRF3761 includes a low-noise, voltage-controlled oscillator (VCO) and an integer-N PLL.

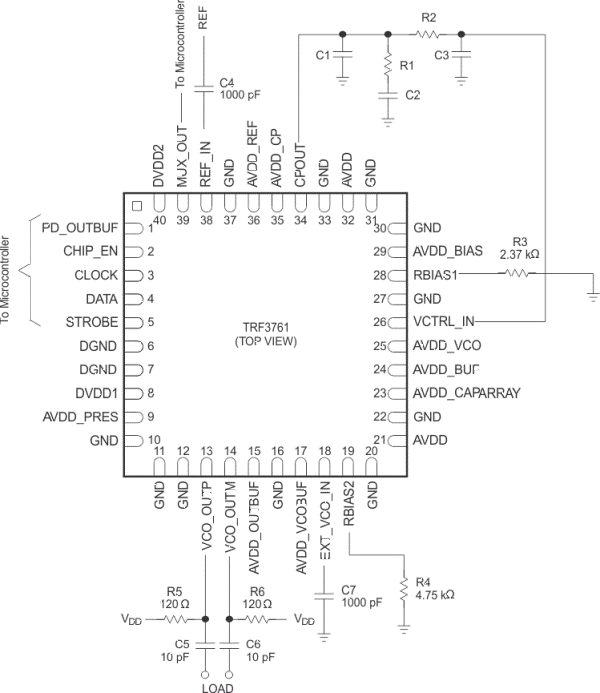

TRF3761 integrates divide-by 1, 2, or 4 options for a more flexible output frequency range. It is controlled through a 3-wire serial-programming-interface (SPI) interface. For power sensitive applications the TRF3761 can be powered down by the SPI interface or externally via chip_en pin 2.
| Integrated VCO | Yes |
| Output frequency (min) (MHz) | 2140 |
| Output frequency (max) (MHz) | 2295 |
| Normalized PLL phase noise (dBc/Hz) | -137 |
| Current consumption (mA) | 130 |
| Features | Integer N PLL, Integrated VCO |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Lock time (µs) (typ) | >350 |

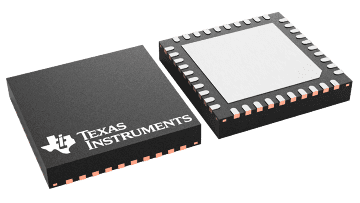

| VQFN (RHA) | 40 | 36 mm² 6 x 6 |
