CDCM1802

正在供货

具有可编程分频器的时钟缓冲器，LVPECL I/O 和 LVCMOS 输出

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The CDCM1802 clock driver distributes one pair of differential clock input to one LVPECL differential clock output pair, Y0 and Y0, and one single-ended LVCMOS output, Y1. It is specifically designed for driving 50-Ω transmission lines. The LVCMOS output is delayed by 1.6 ns over the PECL output stage to minimize noise impact during signal transitions.

The CDCM1802 has two control pins, S0 and S1, to select different output mode settings. The S[1:0] pins are 3-level inputs. Additionally, an enable pin EN is provided to disable or enable all outputs simultaneously. The CDCM1802 is characterized for operation from −40°C to 85°C.

For single-ended driver applications, the CDCM1802 provides a VBB output pin that can be directly connected to the unused input as a common-mode voltage reference.

Distributes One Differential Clock Input to One LVPECL Differential Clock Output and One LVCMOS Single-Ended Output
Programmable Output Divider for Both LVPECL and LVCMOS Outputs
1.6-ns Output Skew Between LVCMOS and LVPECL Transitions Minimizing Noise
3.3-V Power Supply (2.5-V Functional)
Signaling Rate Up to 800-MHz LVPECL and
200-MHz LVCMOS
Differential Input Stage for Wide Common-Mode Range Also Provides VBB Bias Voltage Output for Single-Ended Input Signals
Receiver Input Threshold ±75 mV
16-Pin VQFN Package (3.00 mm × 3.00 mm)

Function	Clock divider, Fanout
Additive RMS jitter (typ) (fs)	150
Output frequency (max) (MHz)	800
Number of outputs	1
Output supply voltage (V)	3.3
Core supply voltage (V)	3.3
Output skew (ps)	1600
Features	Pin programmable
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Output type	LVCMOS, LVPECL
Input type	LVPECL

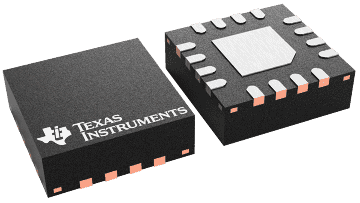

VQFN (RGT)

9 mm² 3 x 3
