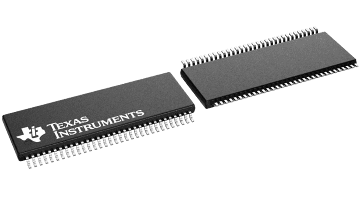

SN74SSTVF16859

正在供货

具有 SSTL_2 输入和输出的 500MHz、13 位至 26 位寄存缓冲器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This 13-bit to 26-bit registered buffer is designed for 2.3-V to 2.7-V V_CC operation.

All inputs are SSTL_2, except the LVCMOS reset (RESET) input. All outputs are edge-controlled LVCMOS circuits optimized for unterminated DIMM loads.

The SN74SSTVF16859 operates from a differential clock (CLK and CLK). Data are registered at the crossing of CLK going high and CLK going low.

The device supports low-power standby operation. When RESET is low, the differential input receivers are disabled, and undriven (floating) data, clock, and reference voltage (V_REF) inputs are allowed. In addition, when RESET is low, all registers are reset and all outputs are forced low. The LVCMOS RESET input always must be held at a valid logic high or low level.

To ensure defined outputs from the register before a stable clock has been supplied, RESET must be held in the low state during power up.

Member of the Texas Instruments Widebus™ Family
Operates at 2.3 V to 2.7 V for PC1600, PC2100, and PC2700
Operates at 2.5 V to 2.7 V for PC3200 (QFN Package)
Pinout and Functionality Compatible With JEDEC Standard SSTV16859
600 ps Faster (Simultaneous Switching) Than the JEDEC Standard SSTV16859 in PC2700 DIMM Applications
1-to-2 Outputs to Support Stacked DDR DIMMs
Output Edge-Control Circuitry Minimizes Switching Noise in an Unterminated Line
Outputs Meet SSTL_2 Class I Specifications
Supports SSTL_2 Data Inputs
Differential Clock (CLK and CLK) Inputs
Supports LVCMOS Switching Levels on the RESET Input
RESET Input Disables Differential Input Receivers, Resets All Registers, and Forces All Outputs Low
Pinout Optimizes DIMM PCB Layout
Latch-Up Performance Exceeds 100mA Per JESD 78, Class II
ESD Protection Exceeds JESD22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Widebus is a trademark of Texas Instruments.

Function	Memory interface
Output frequency (max) (MHz)	500
Number of outputs	26
Output supply voltage (V)	2.5
Core supply voltage (V)	2.5
Features	DDR register
Operating temperature range (°C)	0 to 70
Rating	Military
Output type	SSTL-18
Input type	SSTL-18

TSSOP (DGG)	64	137.7 mm² 17 x 8.1
VQFNP (RGQ)	56	64 mm² 8 x 8
