The CDC2351 is a high-performance clock-driver circuit that distributes one input (A) to ten outputs (Y) with minimum skew for clock distribution. The output-enable (OE) input disables the outputs to a high-impedance state. Each output has an internal series damping resistor to improve signal integrity at the load. The CDC2351 operates at nominal 3.3-V VCC.
The propagation delays are adjusted at the factory using the P0 and P1 pins. The factory adjustments ensure that the part-to-part skew is minimized and is kept within a specified window. Pins P0 and P1 are not intended for customer use and should be connected to GND.
The CDC2351 is characterized for operation from 0°C to 70°C. The CDC2351Q is characterized for operation over the full automotive temperature range of -40°C to 125°C.
EPIC-IIB is a trademark of Texas Instruments.
| Function | Single-ended |
| Output frequency (max) (MHz) | 100 |
| Number of outputs | 10 |
| Output supply voltage (V) | 3.3 |
| Core supply voltage (V) | 3.3 |
| Output skew (ps) | 500 |
| Features | 1 |
| Operating temperature range (°C) | 0 to 70 |
| Rating | Catalog |
| Output type | LVTTL |
| Input type | LVTTL |

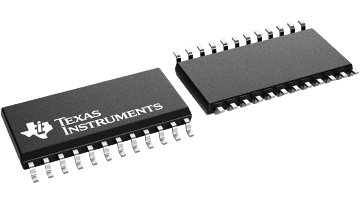

| SOIC (DW) | 24 | 159.65 mm² 15.5 x 10.3 |

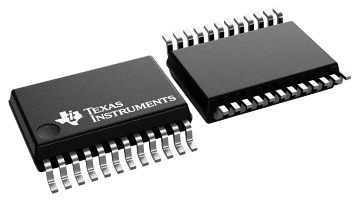

| SSOP (DB) | 24 | 63.96 mm² 8.2 x 7.8 |
