The TPL0202 has two linear-taper digital potentiometers (DPOTs) with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0202-10 has an end-to-end resistance of 10 kΩ.
This DPOT can be used as a mechanical potentiometer replacement, allowing the user (or software) to digitally control and adjust resistance.
The TPL0202 has non-volatile memory (EEPROM) which can be used to store the wiper position for automatic recall upon power-up. The internal registers of the TPL0202 can be accessed using a SPI-compatible digital interface.
| Number of steps | 256 |
| Number of channels | 2 |
| End-to-end resistance (typ) (Ω) | 10000 |
| Resistance taper | Linear |
| End-to-end resistance tolerance (max) (%) | 20 |
| Interface type | SPI |
| Memory | Non-Volatile |
| Bandwidth (MHz) | 2 |
| Temp coeff (typ) (ppm/°C) | 132 |
| Wiper resistance (typ) (Ω) | 25 |
| Operating temperature range (°C) | -40 to 105 |
| Rating | Catalog |

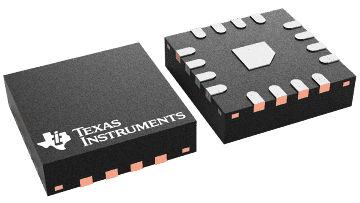

| WQFN (RTE) | 16 | 9 mm² 3 x 3 |
