h1_key

• 11 Bit Resolution
• 105 MSPS Maximum Sample Rate
• SNR = 66.4 dBc at 105 MSPS and 50 MHz IF
• SFDR = 90 dBc at 105 MSPS and 50 MHz IF
• SNR = 65.7 dBc at 105 MSPS and 170 MHz IF
• SFDR = 81 dBc at 105 MSPS and 170 MHz IF
• 2.2 V_pp Differential Input Range
• 5 V Supply Operation
• 3.3 V CMOS Compatible Outputs
• 1.9 W Total Power Dissipation
• 2s Complement Output Format
• On-Chip Input Analog Buffer, Track and Hold, and Reference Circuit

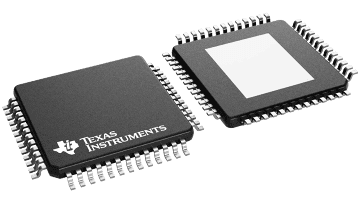

• 52 Pin HTQFP Package With Exposed Heatsink
• Industrial Temperature Range = –40°C to 85°C
• Pin Compatible With ADS5423, ADS5424, and AD6645
• APPLICATIONS
  • Single and Multichannel Digital Receivers
  • Base Station Infrastructure
  • Instrumentation
  • Video and Imaging
• RELATED DEVICES
  • Clocking: CDC7005
  • Amplifiers: OPA695, THS4509

PowerPad is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
