The ADS5463/ADS54RF63 is a 12-bit, 500-/550-MSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. This ADC is one of a family of 12-, 13-, and 14-bit ADCs that operate from 210 MSPS to 550 MSPS. The ADS5463/ADS54RF63 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input.
The ADS54RF63 provides superior SFDR compared to the ADS5463 when the analog input frequency exceeds ~350 MHz or if operation up to 550 MSPS is required.

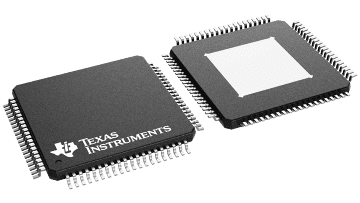

The ADS5463/ADS54RF63 is available in a TQFP-80 PowerPAD™ package. The ADS5463/ADS54RF63 is built on the Texas Instrument complementary bipolar process (BiCom3) and specified over the full industrial temperature range (-40°C to 85°C).
All trademarks are the property of their respective owners.
| Sample rate (max) (Msps) | 550 |
| Resolution (Bits) | 12 |
| Number of input channels | 1 |
| Interface type | Parallel LVDS |
| Analog input BW (MHz) | 2300 |
| Features | High Performance |
| Rating | Catalog |
| Peak-to-peak input voltage range (V) | 2.2 |
| Power consumption (typ) (mW) | 2250 |
| Architecture | Pipeline |
| SNR (dB) | 65.4 |
| ENOB (bit) | 10.4 |
| SFDR (dB) | 90 |
| Operating temperature range (°C) | -40 to 85 |
| Input buffer | Yes |
| HTQFP (PFP) | 80 | 196 mm² 14 x 14 |
