您当前的位置: 首页 > 数据转换器 > 模数转换器 (ADC) > 高速 ADC (≥10MSPS) > ADC10DV200
ADC10DV200

ADC10DV200

正在供货

双通道、10 位、200MSPS 模数转换器 (ADC)

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The ADC10DV200 is a monolithic analog-to-digital converter capable of converting two analog input signals into 10-bit digital words at rates up to 200 Mega Samples Per Second (MSPS). The digital output mode is selectable and can be either differential LVDS or CMOS signals. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 900MHz. Fabricated in core CMOS process, the ADC10DV200 may be operated from a single 1.8V power supply. The ADC10DV200 achieves approximately 9.6 effective bits at Nyquist and consumes just 280mW at 170MSPS in CMOS mode and 450mW at 200MSPS in LVDS mode. The power consumption can be scaled down further by reducing sampling rates.

  • Single 1.8V Power Supply Operation.
  • Power Scaling with Clock Frequency.
  • Internal Sample-and-Hold.
  • Internal or External Reference.
  • Power Down Mode.
  • Offset Binary or 2's Complement Output Data Format.
  • LVDS or CMOS Output Signals.

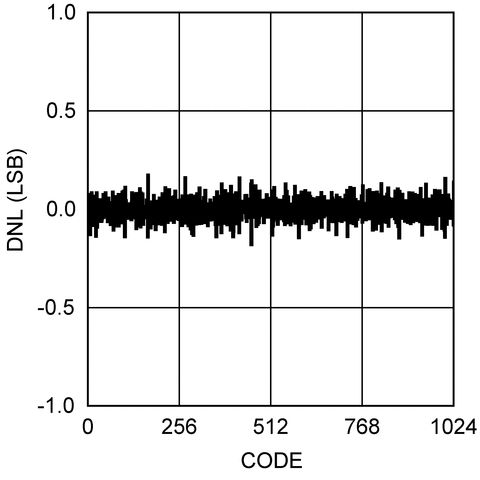

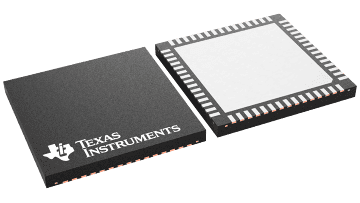

  • 60-pin WQFN Package, (9x9x0.8mm, 0.5mm Pin-Pitch)
  • Clock Duty Cycle Stabilizer.
  • IF Sampling Bandwidth > 900MHz.

Key Specifications

  • Resolution 10 Bits
  • Conversion Rate 200 MSPS
  • ENOB 9.6 bits (typ) @Fin=70 MHz
  • SNR 59.9 dBFS (typ) @Fin=70 MHz
  • SINAD 59.9 dBFS (typ) @Fin=70 MHz
  • SFDR 82 dBFS (typ) @Fin=70 MHz
  • LVDS Power 450mW (typ) @Fs=200 MSPS
  • CMOS Power 280mW (typ) @Fs=170 MSPS
  • Operating Temp. Range −40°C to +85°C.

All trademarks are the property of their respective owners.

Sample rate (max) (Msps)200
Resolution (Bits)10
Number of input channels2
Interface typeParallel CMOS, Parallel LVDS
Analog input BW (MHz)900
FeaturesLow Power
RatingCatalog
Peak-to-peak input voltage range (V)1.5
Power consumption (typ) (mW)450
ArchitecturePipeline
SNR (dB)59.9
ENOB (bit)9.65
SFDR (dB)82
Operating temperature range (°C)-40 to 85
Input bufferNo
WQFN (NKA)6081 mm² 9 x 9
