The ADS5481/ADS5482/ADS5483 (ADS548x) is a 16-bit family of analog-to-digital converters (ADCs) that operate from both a 5-V supply and 3.3-V supply while providing LVDS-compatible digital outputs. The ADS548x integrated analog input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is also provided to simplify the system design.
Designed for highest total ENOB, the ADS548x family has outstanding low noise performance and spurious-free dynamic range.

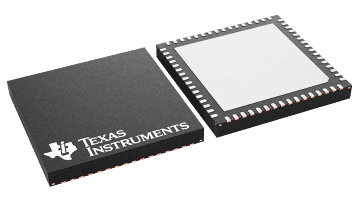

The ADS548x is available in an QFN-64 PowerPAD package. The device is built on Texas Instruments complementary bipolar process (BiCom3) and is specified over the full industrial temperature range (–40°C to +85°C).
All trademarks are the property of their respective owners.
| Sample rate (max) (Msps) | 80 |
| Resolution (Bits) | 16 |
| Number of input channels | 1 |
| Interface type | Parallel LVDS |
| Analog input BW (MHz) | 125 |
| Features | High Performance |
| Rating | Catalog |
| Peak-to-peak input voltage range (V) | 3 |
| Power consumption (typ) (mW) | 2100 |
| Architecture | Pipeline |
| SNR (dB) | 81 |
| ENOB (bit) | 13 |
| SFDR (dB) | 98 |
| Operating temperature range (°C) | -40 to 85 |
| Input buffer | Yes |
| VQFN (RGC) | 64 | 81 mm² 9 x 9 |
