ADC16V130

ADC16V130

正在供货

16 位、130MSPS 模数转换器 (ADC)

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

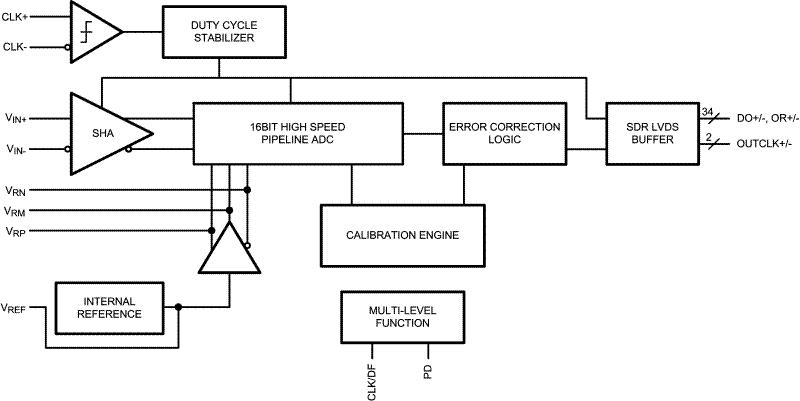

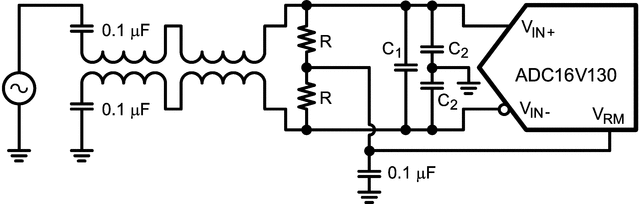

The ADC16V130 is a monolithic high performance CMOS analog-to-digital converter capable of converting analog input signals into 16-bit digital words at rates up to 130 Mega Samples Per Second (MSPS). This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and external component count while providing excellent dynamic performance. Automatic power-up calibration enables excellent dynamic performance and reduces part-to-part variation, and the ADC16V130 could be re-calibrated at any time by asserting and then de-asserting power-down. An integrated low noise and stable voltage reference and differential reference buffer amplifier easies board level design. On-chip duty cycle stabilizer with low additive jitter allows wide duty cycle range of input clock without compromising its dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1.4 GHz. The digital data is provided via full data rate LVDS outputs – making possible the 64-pin, 9mm x 9mm WQFN package. The ADC16V130 operates on dual power supplies +1.8V and +3.0V with a power-down feature to reduce the power consumption to very low levels while allowing fast recovery to full operation.

  • Dual Supplies: 1.8V and 3.0V Operation
  • On Chip Automatic Calibration During Power-Up
  • Low Power Consumption
  • Multi-Level Multi-Function Pins for CLK/DF and PD
  • Power-Down and Sleep Modes
  • On Chip Precision Reference and Sample-and-Hold Circuit
  • On Chip Low Jitter Duty-Cycle Stabilizer
  • Offset Binary or 2's Complement Data Format
  • Full Data Rate LVDS Output Port

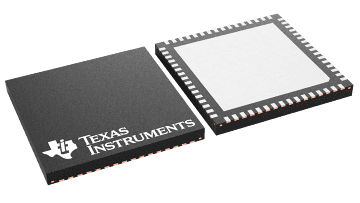

  • 64-pin WQFN Package (9x9x0.8, 0.5mm Pin-Pitch)

Key Specifications

  • High IF Sampling Receivers
  • Multi-carrier Base Station Receivers
    • GSM/EDGE, CDMA2000, UMTS, LTE, and WiMax
  • Test and Measurement Equipment
  • Communications Instrumentation
  • Data Acquisition
  • Portable Instrumentation

All trademarks are the property of their respective owners.

Sample rate (max) (Msps)130
Resolution (Bits)16
Number of input channels1
Interface typeParallel LVDS
Analog input BW (MHz)1400
FeaturesHigh Performance
RatingCatalog
Peak-to-peak input voltage range (V)2.4
Power consumption (typ) (mW)755
ArchitecturePipeline

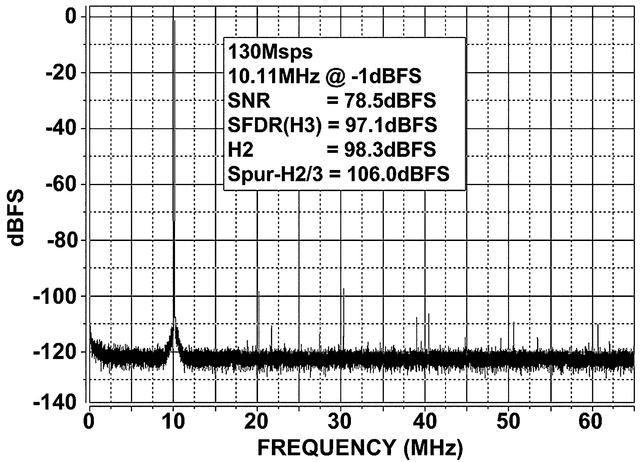

SNR (dB)78.5
ENOB (bit)12.7
SFDR (dB)95.5
Operating temperature range (°C)-40 to 85
Input bufferNo
WQFN (NKD)6481 mm² 9 x 9
