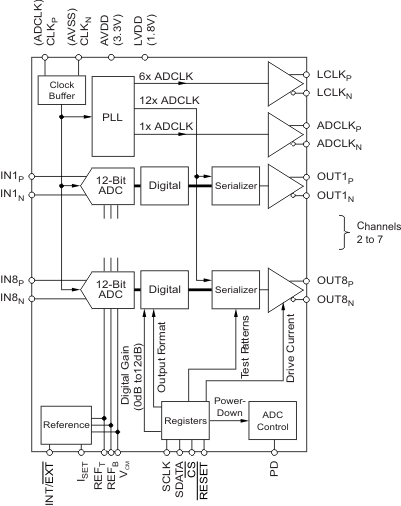

The ADS528x is a family of high-performance, low-power, octal channel analog-to-digital converters (ADCs). Available in either a 9mm × 9mm QFN package or an HTQFP-80 package, with serialized low-voltage differential signaling (LVDS) outputs and a wide variety of programmable features, the ADS528x is highly customizable for a diversity of applications and offers an unprecedented level of system integration. An application note, XAPP774 (available at www.xilinx.com), describes how to interface the serial LVDS outputs of TI&3146;s ADCs to Xilinx field-programmable gate arrays (FPGAs). The ADS528x family is specified over the industrial temperature range of –40°C to +85°C.
| Sample rate (max) (Msps) | 65 |
| Resolution (Bits) | 12 |
| Number of input channels | 8 |
| Interface type | Serial LVDS |
| Analog input BW (MHz) | 520 |
| Features | Low Power |
| Rating | Catalog |
| Peak-to-peak input voltage range (V) | 2 |
| Power consumption (typ) (mW) | 616 |
| Architecture | Pipeline |
| SNR (dB) | 70 |
| ENOB (bit) | 11.3 |
| SFDR (dB) | 85 |
| Operating temperature range (°C) | -40 to 85 |
| Input buffer | No |

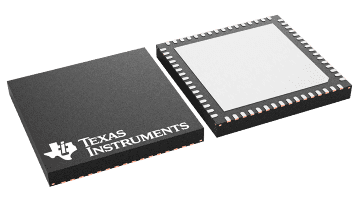

| VQFN (RGC) | 64 | 81 mm² 9 x 9 |
