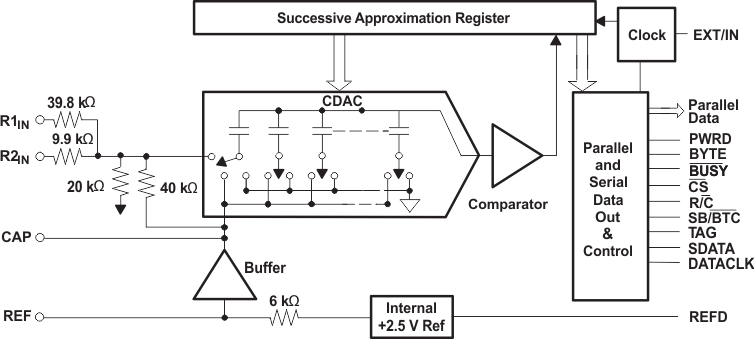

The ADS8506 is a complete low power, single 5-V supply, 12-bit sampling analog-to-digital (A/D) converter. It contains a complete 12-bit capacitor-based, successive approximation register (SAR) A/D converter with sample and hold, clock, reference, and data interface. The converter can be configured for a variety of input ranges including ±10 V, 4 V, and 5 V. For most input ranges, the input voltage can swing to 25 V or –25 V without damage to the converter.
A SPI compatible serial interface allows data to be synchronized to an internal or external clock. A full parallel interface with BYTE select is also provided to allow the maximum system design flexibility. The ADS8506 is specified at 40 kHz sampling rate over the industrial –40°C to 85°C temperature range.
QSPI, SPI are trademarks of Motorola.
| Resolution (Bits) | 12 |
| Sample rate (max) (ksps) | 40 |
| Number of input channels | 1 |
| Interface type | Byte-Wide, Parallel, SPI |
| Architecture | SAR |
| Input type | Single-ended |
| Rating | Catalog |
| Reference mode | External, Internal |
| Input voltage range (max) (V) | 10 |
| Input voltage range (min) (V) | -10 |
| Features | Daisy-Chainable, Oscillator |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 155 |
| Analog supply (min) (V) | 4.75 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 74 |
| Digital supply (min) (V) | 4.75 |
| Digital supply (max) (V) | 5.25 |
| SOIC (DW) | 28 | 184.37 mm² 17.9 x 10.3 |
