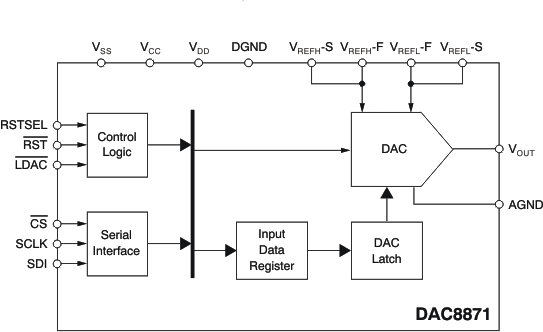

The DAC8871 is a 16-bit, single-channel, serial input, voltage output digital-to-analog converter (DAC). The output range is determined by the reference voltage, VREFH and VREFL. By properly selecting the reference, the output can be unipolar or bipolar, and up to xB118V. The DAC8871 provides excellent linearity (1LSB INL), low noise, and fast settling (1ms to 1LSB of full scale output) over the specified temperature range of -40°C to +105°C. The output is unbuffered, which reduces the power consumption and the error introduced by the buffer. This device features a standard high-speed clock (up to 50MHz), and a 3V or 5V SPI serial interance to communicate with the DSP or microprocessors. For optimum performance, a set of Kelvin connections to external reference are provided.
The DAC8871 is available in a TSSOP-16 package.
TI DSP is a trademark of Texas Instruments.
SPI, QSPI are trademarks of Motorola, Inc.
Microwire is a trademark of National Semiconductor.
All other trademarks are the property of their respective owners.
| Resolution (Bits) | 16 |
| Number of DAC channels | 1 |
| Interface type | SPI |
| Output type | Unbuffered Voltage |
| Settling time (µs) | 1 |
| Features | Reset to Mid-Scale |
| Reference type | Ext |
| Architecture | R-2R |
| Rating | Catalog |
| Output range (max) (mA/V) | 18 |
| Output range (min) (mA/V) | -18 |
| Sample/update rate (Msps) | 1 |
| Power consumption (typ) (mW) | 0.015 |
| Operating temperature range (°C) | -40 to 105 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
