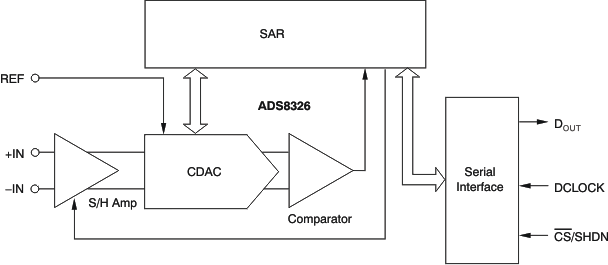

The ADS8326 is a 16-bit, sampling, analog-to-digital (A/D) converter specified for a supply voltage range from 2.7V to 5.5V. It requires very little power, even when operating at the full data rate. At lower data rates, the high speed of the device enables it to spend most of its time in the power-down mode. For example, the average power dissipation is less than 0.2mW at a 10kHz data rate.
The ADS8326 offers excellent linearity and very low noise and distortion. It also features a synchronous serial (SPI/SSI-compatible) interface and a differential input. The reference voltage can be set to any level within the range of 0.1V to VDD.
Low power and small size make the ADS8326 ideal for portable and battery-operated systems. It is also a perfect fit for remote data-acquisition modules, simultaneous multichannel systems, and isolated data acquisition. The ADS8326 is available in either an MSOP-8 and an SON-8 package.
All trademarks are the property of their respective owners.
| Resolution (Bits) | 16 |
| Sample rate (max) (ksps) | 250 |
| Number of input channels | 1 |
| Interface type | SPI |
| Architecture | SAR |
| Input type | Single-ended |
| Rating | Catalog |
| Reference mode | External |
| Input voltage range (max) (V) | 5.5 |
| Input voltage range (min) (V) | 0 |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 10 |
| Analog supply (min) (V) | 2.7 |
| Analog supply voltage (max) (V) | 5.5 |
| SNR (dB) | 91.5 |
| Digital supply (min) (V) | 2.7 |
| Digital supply (max) (V) | 5.5 |
| VSON (DRB) | 8 | 9 mm² 3 x 3 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
